SKU: 3211-2Z-EU

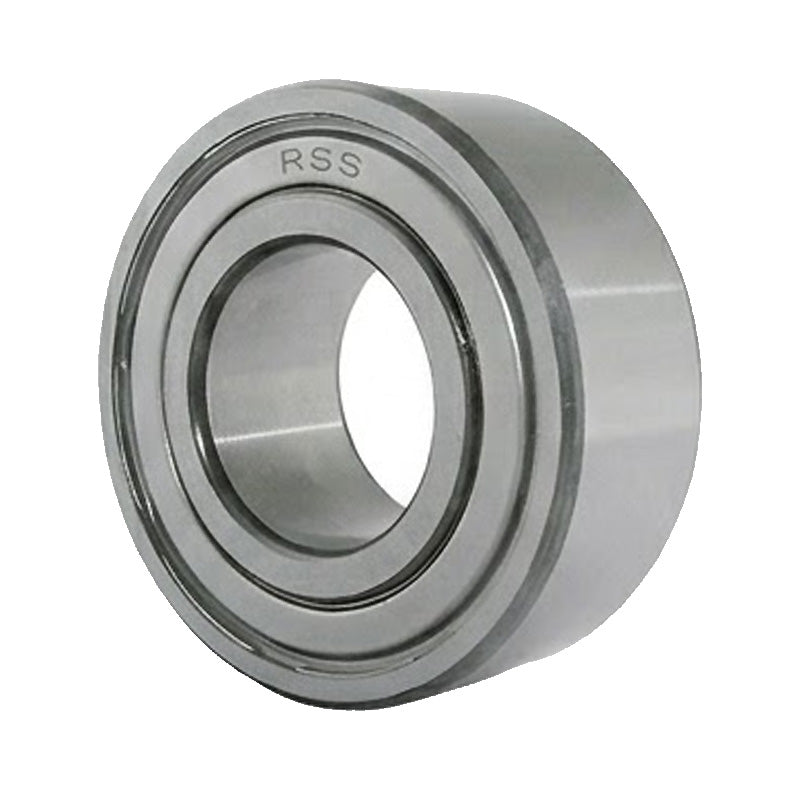

32112Z Budget Shielded Double Row Angular Contact Ball Bearing 55x100x33.3mm
- Regular price
- €62.67 ex VAT
- Sale price
- €62,67
- Regular price
-
In stock
Quantity Price Breaks
10
€55.78
19
€52.64
29
€52.02
39
€51.39
49
€50.76
74
€50.14
99
€47.00
199
€46.38
249
€45.75
499
€45.12
999
€43.87
SKU:
3211-2Z-EU
32112Z Budget Shielded Double Row Angular Contact Ball Bearing 55x100x33.3mm
- Regular price
- €62.67 ex VAT
- Sale price
- €62,67
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 55mm |
| D | = | 100mm |
| B | = | 33.3mm |
| Dynamic load C | = | 60 kN |
| Static load Co | = | 47.5 kN |
| Fatigue load limit Pu | = | 2 kN |
| Reference speed | = | 6300 rpm |
| Weight | = | 0.91 kg |
| d1 | = | 63.2mm |
| D1 | = | 92.3mm |
| r1r2 min | = | 1.5mm |
| a | = | 57mm |
| da min | = | 63mm |
| da max | = | 63mm |
| Da max | = | 91mm |
| ra max | = | 1.5mm |
