SKU: 32B-2-BB-NO12-RENOLD
Renold Blue Box 32B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €279.21 ex VAT
- Sale price
- €279,21
- Regular price
-
Not in stock
Quantity Price Breaks
2
€248.50
5
€234.54
10
€231.74
29
€228.95
49
€226.16
75
€223.37
100
€209.41
200
€206.62
250
€203.82
500
€201.03
1000
€195.45
SKU:
32B-2-BB-NO12-RENOLD
Renold Blue Box 32B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- €279.21 ex VAT
- Sale price
- €279,21
- Regular price
-
Description

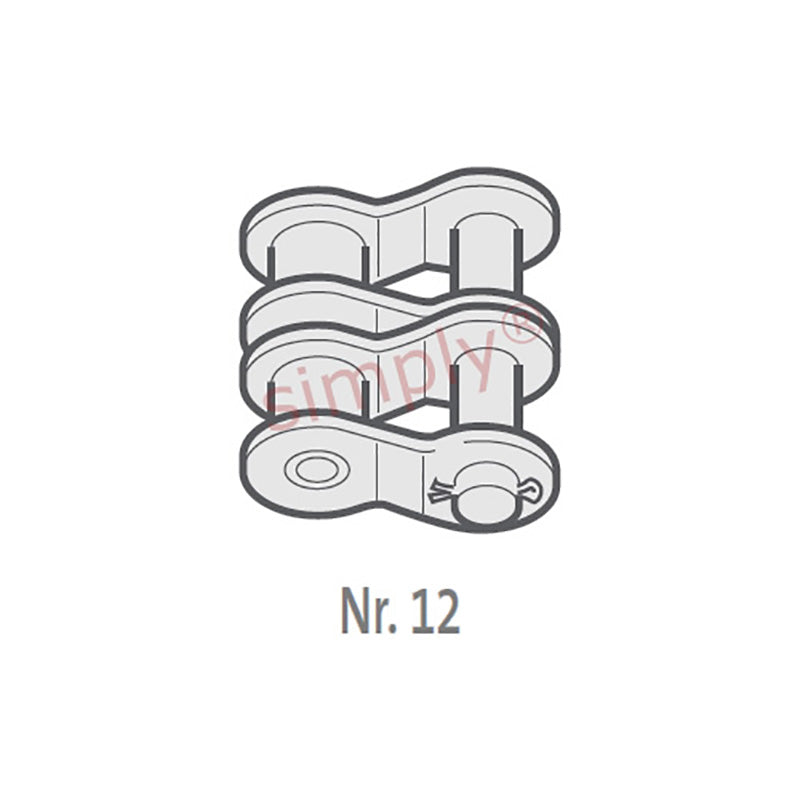

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 29.21mm |
| Plate Height max (D) | = | 42.29mm |
| Plate Width Inner max (E) | = | 7.11mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 17.81mm |
| Pin Length max (H1) | = | 122mm |
| Connecting Link Extension max (J) | = | 8mm |
| ISO606 Tensile Strength min | = | 450000 N |
| Weight | = | 0.34kg/m |
