SKU: 32B-3-BB-NO11-RENOLD
Renold Blue Box 32B-3-NO11 BS Triplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- €212.20 ex VAT
- Sale price
- €212,20
- Regular price
-
Not in stock
Quantity Price Breaks
2
€188.86
5
€178.25
10
€176.13
29
€174.00
49
€171.88
75
€169.76
100
€159.15
200
€157.03
250
€154.91
500
€152.78
1000
€148.54
SKU:
32B-3-BB-NO11-RENOLD
Renold Blue Box 32B-3-NO11 BS Triplex Chain Cottered Connecting Link 2 inch Pitch
- Regular price
- €212.20 ex VAT
- Sale price
- €212,20
- Regular price
-
Description

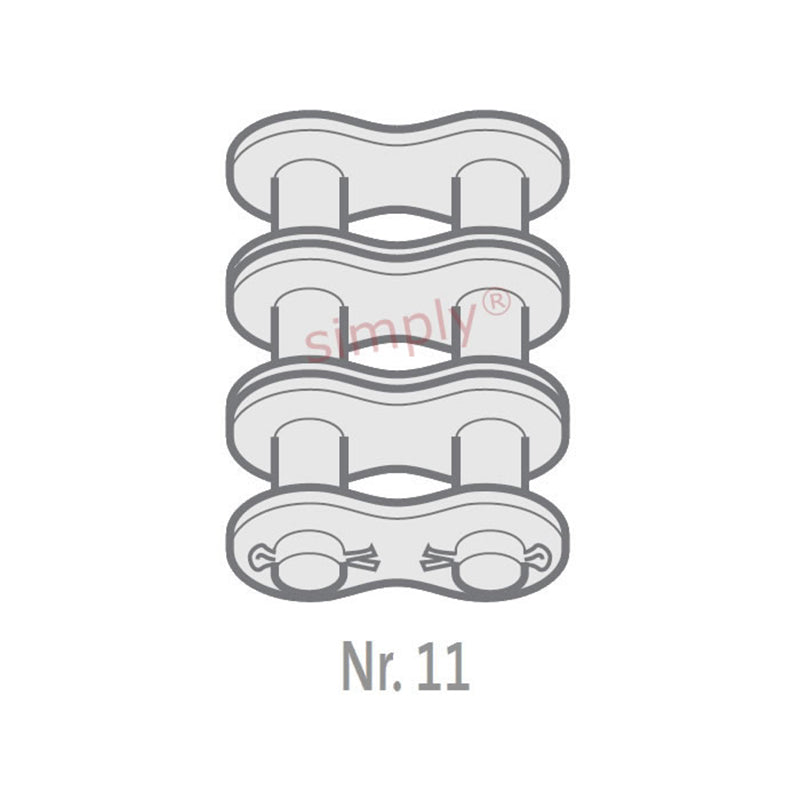

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 30.99mm |
| Roller Diameter max (C) | = | 29.21mm |
| Plate Height max (D) | = | 42.29mm |
| Plate Width Inner max (E) | = | 7.11mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 17.81mm |
| Pin Length max (H2) | = | 180.5mm |
| Connecting Link Extension max (J) | = | 8mm |
| Transverse Pitch nom (K) | = | 58.55mm |
| ISO606 Tensile Strength min | = | 670000 N |
| Weight | = | 0.34kg/m |
