SKU: 33005-NTN

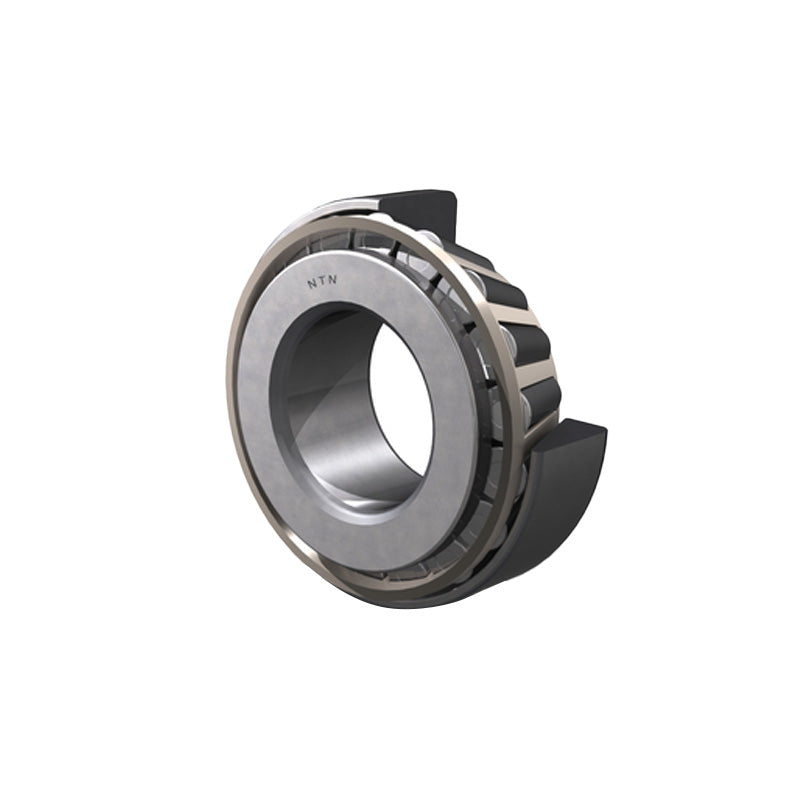

NTN 33005 Taper Roller Bearing 25x47x17mm
- Regular price
- €29.70 ex VAT
- Sale price
- €29,70
- Regular price
-
In stock
Quantity Price Breaks
10
€26.43
19
€24.95
29
€24.65
39
€24.35
49
€24.06
74
€23.76
99
€22.28
199
€21.98
249
€21.68
499
€21.38
999
€20.79
SKU:
33005-NTN
NTN 33005 Taper Roller Bearing 25x47x17mm
- Regular price
- €29.70 ex VAT
- Sale price
- €29,70
- Regular price
-
Description
|
Narrow Section Taper Roller Bearings: Typically used in motorcycle steering heads these bearings are manufactured with large bore to outside diameter ratios and low overall height to permit use in space restricted applications, typically in motorcycle and automotive installations Benefits: Narrow section, low height, large bore to diameter ratio |
Technical
| d | = | 25mm |
| D | = | 47mm |
| T | = | 17mm |
| Dynamic Load Rating | = | 42 KN |
| Static Load Rating | = | 42.3 KN |
| Grease Limiting Speed | = | 8300 (r/min) |
| Oil Limiting Speed | = | 11000 (r/min) |
| Weight | = | 0.133 kg |
