SKU: 33020-TIM

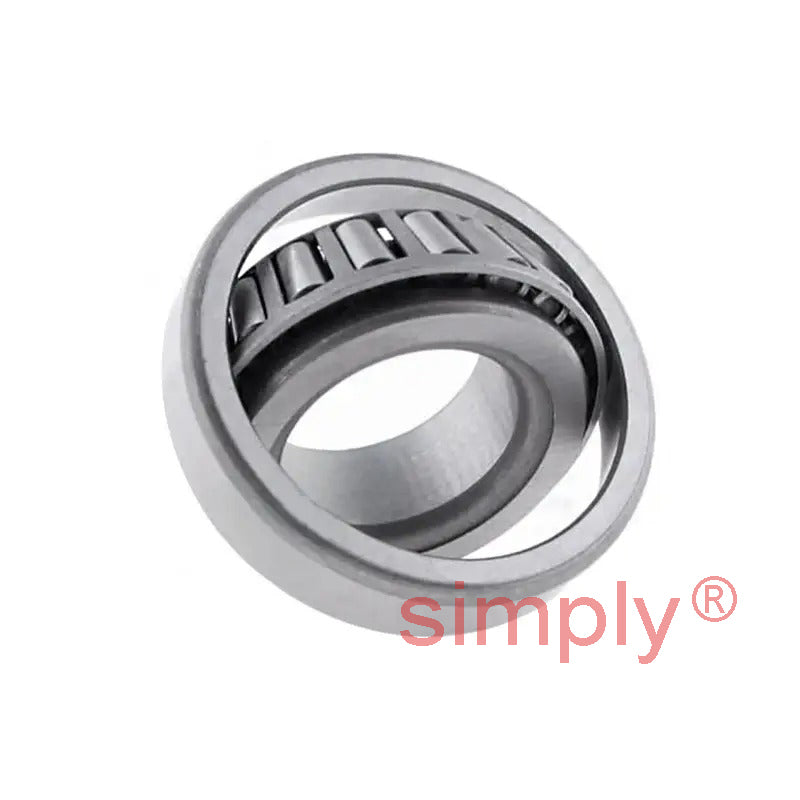

Timken 33020 Metric Taper Roller Bearing 100x150x39mm
- Regular price
- €243.12 ex VAT
- Sale price
- €243,12
- Regular price
-
Not in stock
Quantity Price Breaks
10
€216.38
20
€204.22
30
€201.79
40
€199.36
50
€196.93
75
€194.50
100
€182.34
200
€179.91
250
€177.48
500
€175.05
1000
€170.18
SKU:
33020-TIM
Timken 33020 Metric Taper Roller Bearing 100x150x39mm
- Regular price
- €243.12 ex VAT
- Sale price
- €243,12
- Regular price
-
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
Technical
| d | = | 100mm |
| D | = | 150mm |
| T | = | 39mm |
| Dynamic load | = | 224 kN |
| Static load | = | 390 kN |
| Fatigue load limit Pu | = | 41.5 kN |
| Reference speed | = | 3000 rpm |
| Limiting speed | = | 4000 rpm |
| Mass | = | 2.4 kg |
| d1 | = | 122mm |
| B | = | 39mm |
| C | = | 32.5mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 1.5mm |
| a | = | 29mm |
| da max | = | 109mm |
| db min | = | 108mm |
| Da min | = | 135mm |
| Da max | = | 142mm |
| Db min | = | 143mm |
| Ca min | = | 7mm |
| Cb min | = | 6.5mm |
| ra max | = | 2mm |
| rb max | = | 1.5mm |
| e | = | 0.3 |
| Y | = | 2 |
| Y0 | = | 1.1 |
