SKU: 3303-2RS-EU

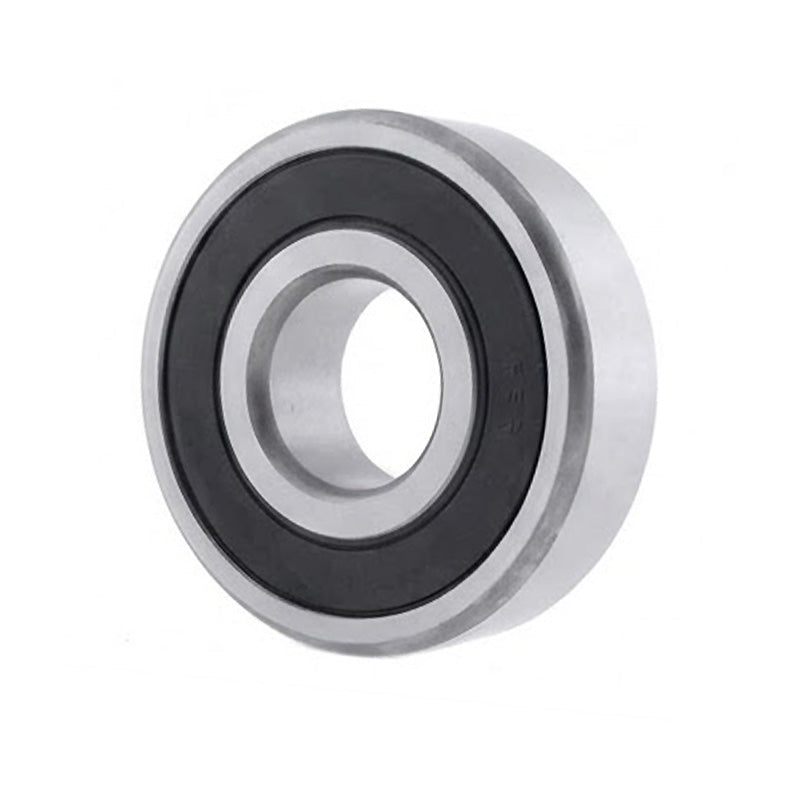

33032RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 17x47x22.2mm
- Regular price
- €25.61 ex VAT
- Sale price
- €25,61
- Regular price
-
In stock
Quantity Price Breaks
10
€22.79
19
€21.51
29
€21.26
39
€21.00
49
€20.74
74
€20.49
99
€19.21
199
€18.95
249
€18.70
499
€18.44
999
€17.93
SKU:
3303-2RS-EU
33032RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 17x47x22.2mm
- Regular price
- €25.61 ex VAT
- Sale price
- €25,61
- Regular price
-
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 17mm |
| D | = | 47mm |
| B | = | 22.2mm |
| Dynamic load C | = | 21.6 kN |
| Static load Co | = | 12.7 kN |
| Fatigue load limit Pu | = | 0.54 kN |
| Reference speed | = | 11000 rpm |
| Weight | = | 0.18 kg |
| d1 | = | 25.7mm |
| D1 | = | 40.2mm |
| r1r2 min | = | 1mm |
| a | = | 28mm |
| da min | = | 22.6mm |
| da max | = | 25.5mm |
| Da max | = | 41.4mm |
| ra max | = | 1mm |
