SKU: 3305-2Z-EU

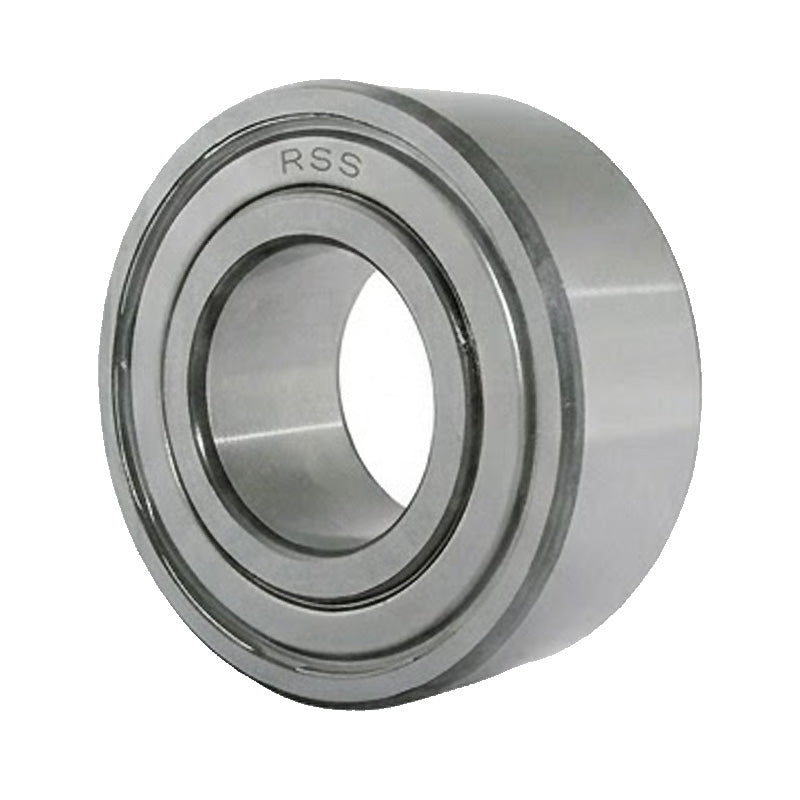

33052Z Budget Shielded Double Row Angular Contact Ball Bearing 25x62x25.4mm
- Regular price
- €30.30 ex VAT
- Sale price
- €30,30
- Regular price
-
In stock
Quantity Price Breaks
10
€26.97
19
€25.45
29
€25.15
39
€24.85
49
€24.54
74
€24.24
99
€22.73
199
€22.42
249
€22.12
499
€21.82
999
€21.21
SKU:
3305-2Z-EU
33052Z Budget Shielded Double Row Angular Contact Ball Bearing 25x62x25.4mm
- Regular price
- €30.30 ex VAT
- Sale price
- €30,30
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 25mm |
| D | = | 62mm |
| B | = | 25.4mm |
| Dynamic load C | = | 32 kN |
| Static load Co | = | 20.4 kN |
| Fatigue load limit Pu | = | 0.865 kN |
| Reference speed | = | 11000 rpm |
| Weight | = | 0.35 kg |
| d1 | = | 35.7mm |
| D1 | = | 53.4mm |
| r1r2 min | = | 1.1mm |
| a | = | 36mm |
| da min | = | 32mm |
| da max | = | 35.5mm |
| Da max | = | 55mm |
| ra max | = | 1mm |
