SKU: 3310-2Z-EU

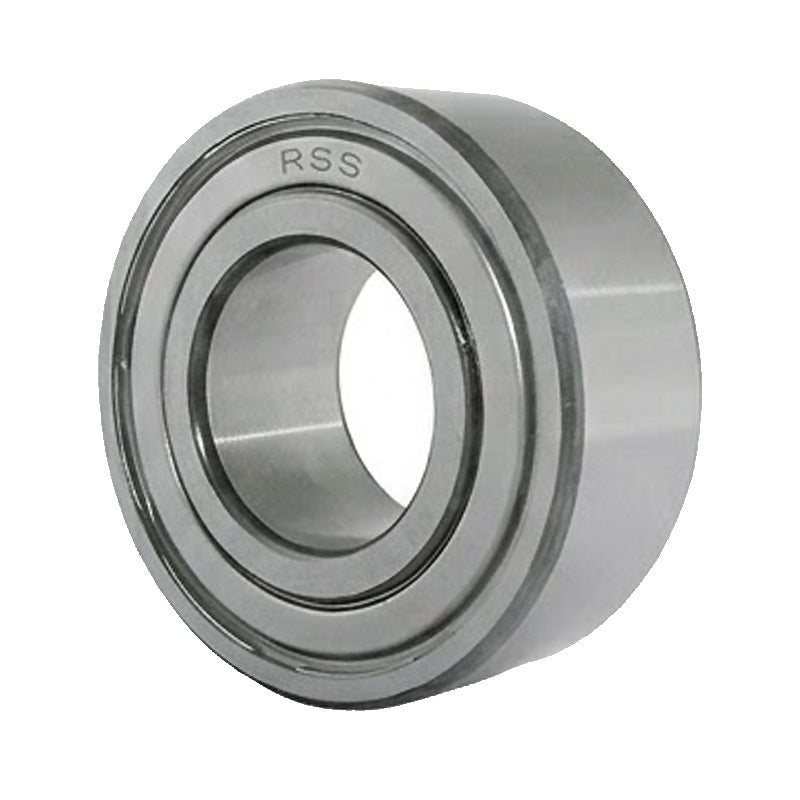

33102Z Budget Shielded Double Row Angular Contact Ball Bearing 50x110x44.4mm
- Regular price
- €94.45 ex VAT
- Sale price
- €94,45
- Regular price
-
Not in stock
Quantity Price Breaks
10
€84.06
19
€79.34
29
€78.39
39
€77.45
49
€76.50
74
€75.56
99
€70.84
199
€69.89
249
€68.95
499
€68.00
999
€66.12
SKU:
3310-2Z-EU
33102Z Budget Shielded Double Row Angular Contact Ball Bearing 50x110x44.4mm
- Regular price
- €94.45 ex VAT
- Sale price
- €94,45
- Regular price
-
Description
DRACZ1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Technical
| d | = | 50mm |
| D | = | 110mm |
| B | = | 44.4mm |
| Dynamic load C | = | 90 kN |
| Static load Co | = | 64 kN |
| Fatigue load limit Pu | = | 2.75 kN |
| Reference speed | = | 6000 rpm |
| Weight | = | 1.7 kg |
| d1 | = | 62mm |
| D1 | = | 99.5mm |
| r1r2 min | = | 2mm |
| a | = | 65mm |
| da min | = | 61mm |
| da max | = | 61.5mm |
| Da max | = | 99.5mm |
| ra max | = | 2mm |
