SKU: 35-1-5MTR-MB

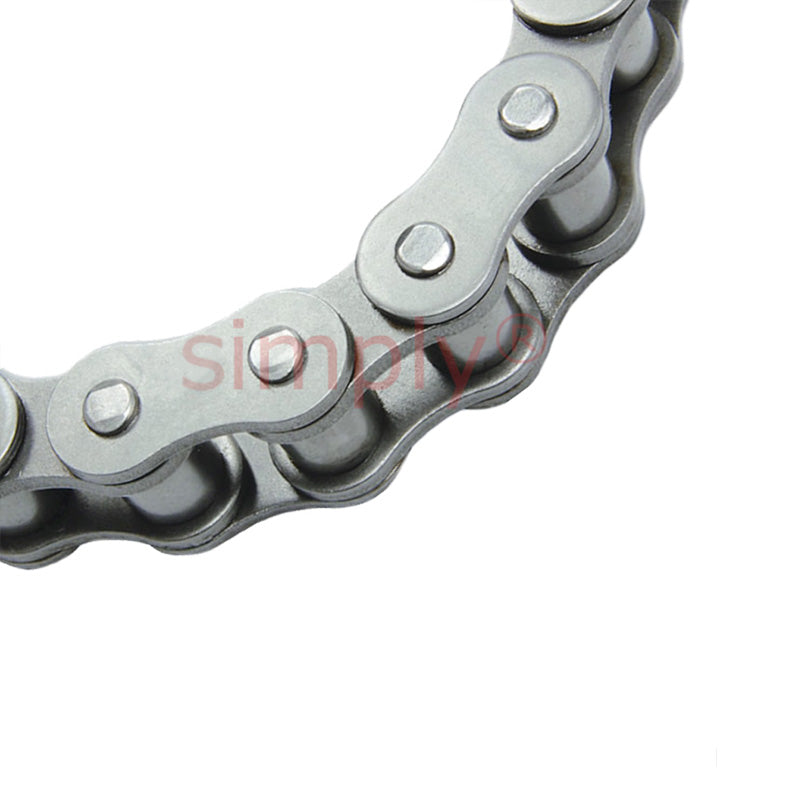

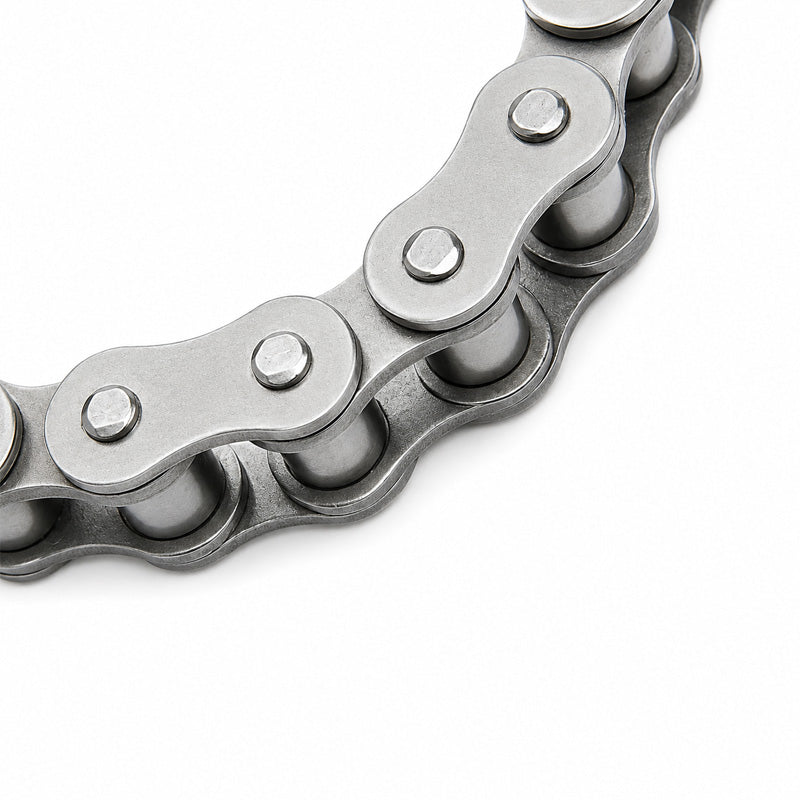

Branded ANSI/ASA35-1 Simplex Roller Chain 3/8 inch Pitch 5 Metres
- Regular price
- €27.31 ex VAT
- Sale price
- €27,31
- Regular price
-
In stock
Quantity Price Breaks
2
€24.31
5
€22.94
10
€22.67
29
€22.39
49
€22.12
75
€21.85
100
€20.48
200
€20.21
250
€19.94
500
€19.66
1000
€19.12
SKU:
35-1-5MTR-MB
Branded ANSI/ASA35-1 Simplex Roller Chain 3/8 inch Pitch 5 Metres
- Regular price
- €27.31 ex VAT
- Sale price
- €27,31
- Regular price
-
Description
Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.
Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.
Technical
| Pitch (P) | = | 9.53mm = 0.375 (3/8) inch |
| Roller Diameter (D1 max) | = | 5.08mm |
| Width between inner plates (B1 min) | = | 4.77mm |
| Pin dia meter (D2 max) | = | 3.58mm |
| Pin length (L max) | = | 12.4mm |
| Pin length (Lc max) | = | 13.17mm |
| Inner plate depth (H2 max) | = | 9 |
| mmPlate thickness (T max) | = | 1.3 |
| mmUltimate tensile strength (Q min) kN/LB | = | 7.90/1795 |
| Average tensile strength (Q0) kN | = | 10.8 |
| Weight per meter (q) kg/m | = | 0.33 |
