SKU: 35-1-NO30-MB
Branded 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- €4.86 ex VAT
- Sale price
- €4,86
- Regular price
-
In stock
Quantity Price Breaks
2
€4.33
5
€4.08
10
€4.03
29
€3.99
49
€3.94
75
€3.89
100
€3.65
200
€3.60
250
€3.55
500
€3.50
1000
€3.40
SKU:
35-1-NO30-MB
Branded 35-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 3/8 inch Pitch
- Regular price
- €4.86 ex VAT
- Sale price
- €4,86
- Regular price
-
Description

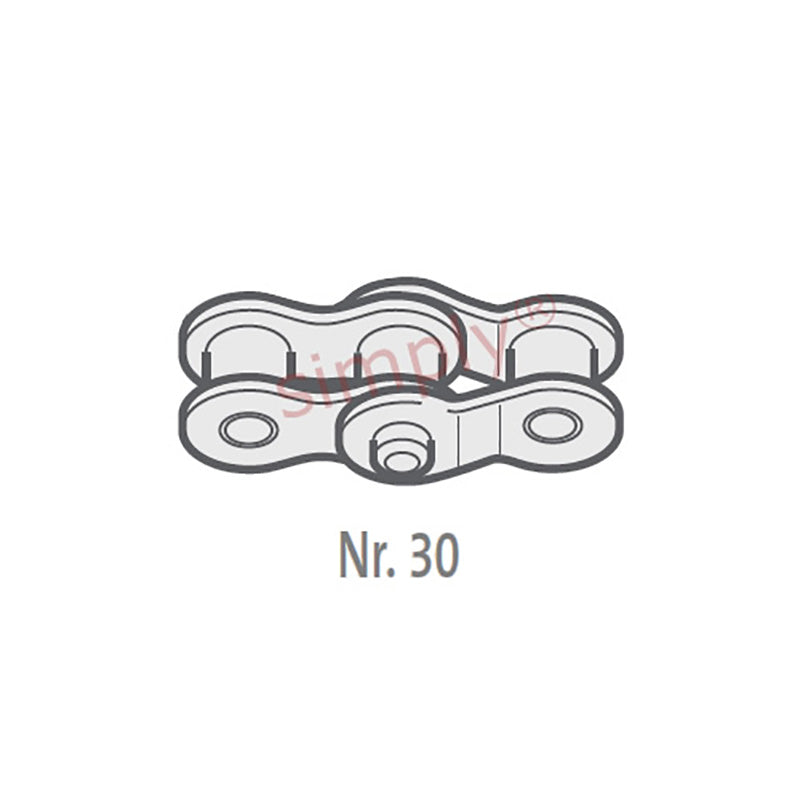

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.375 inch |
| Pitch (A) | = | 9.525mm |
| Inside Width min (B) | = | 4.77mm |
| Roller Diameter max (C) | = | 5.08mm |
| Plate Height max (D) | = | 8.95mm |
| Plate Width Inner max (E) | = | 1.2mm |
| Plate Width Outer max (F) | = | 1.2mm |
| Pin Diameter max (G) | = | 3.58mm |
| Pin Length max (H1) | = | 12.15mm |
| Connecting Link Extension max (J) | = | 0.949999999999999mm |
| ISO606 Tensile Strength min | = | 7900 N |
| Weight | = | 0.008kg/m |
