SKU: 361200.MB
361200 NKE Rubber Sealed Cam Roller Cylindrical Outer 10x32x9mm
- Regular price
- €29.11 ex VAT
- Sale price
- €29,11
- Regular price
-
Quantity Price Breaks
361200 NKE Rubber Sealed Cam Roller Cylindrical Outer 10x32x9mm
- Regular price
- €29.11 ex VAT
- Sale price
- €29,11
- Regular price
-
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |

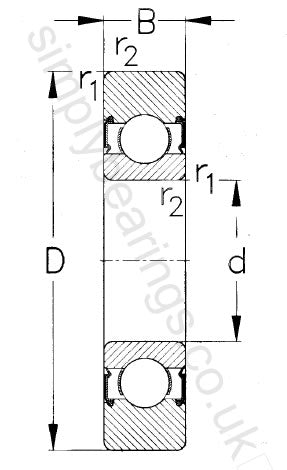

Technical
| Bore | = | 10mm |
| Outside Diameter | = | 32mm |
| Width | = | 9mm |
| Max rad R | = | 400mm |
| r1r2 | = | 0.6mm |
| Limiting speed | = | 17000 rpm |
| Dynamic load as cam roller | = | 5.1 kN |
| Static load as cam roller | = | 2.4 kN |
| Dynamic load as bearing | = | 4.6 kN |
| Static load as bearing | = | 2 kN |
| Max radial load | = | 3.4 kN |
| Max static load | = | 4.9 kN |
| Weight | = | 0.041 kg |
