SKU: 361200R-EU

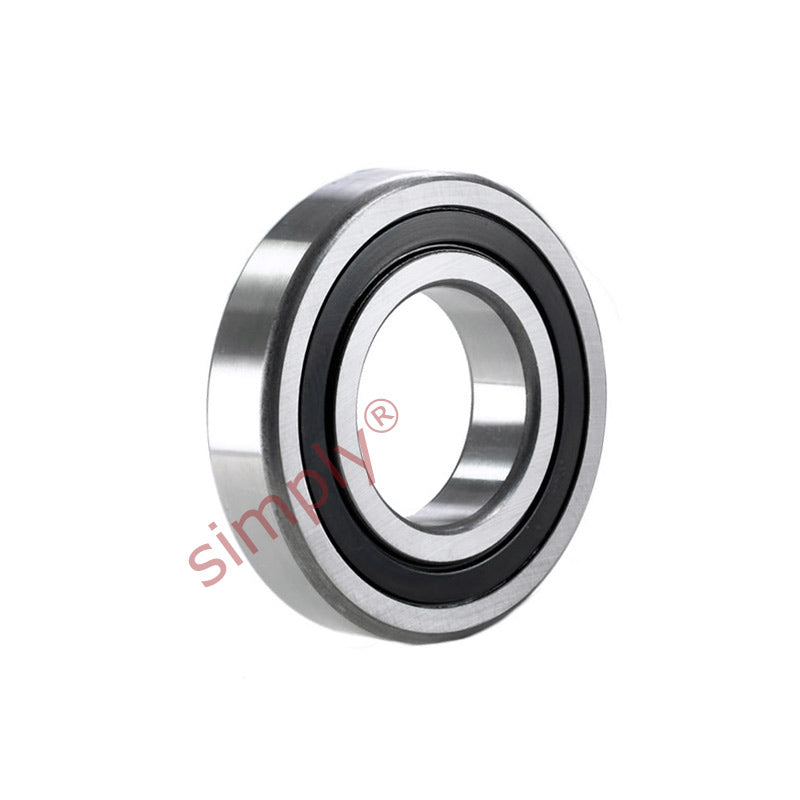

361200R Budget Rubber Sealed Crowned Single Row Cam Roller 10x32x9mm
- Regular price
- €11.87 ex VAT
- Sale price
- €11,87
- Regular price
-
Quantity Price Breaks
361200R Budget Rubber Sealed Crowned Single Row Cam Roller 10x32x9mm
- Regular price
- €11.87 ex VAT
- Sale price
- €11,87
- Regular price
-
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
Technical
| d | = | 10mm |
| D | = | 32mm |
| B | = | 9mm |
| d1 | = | 14.8mm |
| D1 | = | 23.4mm |
| r1r2 min | = | 0.6mm |
| Limiting speed | = | 12000 rpm |
| Weight | = | 0.041 kg |
| Dynamic load C | = | 4.62 kN |
| Static load Co | = | 2 kN |
| Fatigue load limit Pu | = | 0.085 kN |
| Maximum dynamic radial load Fr | = | 3.4 kN |
| Maximum static radial load For | = | 4.9 kN |
