SKU: 3809.B.2RSR.TVH.EU

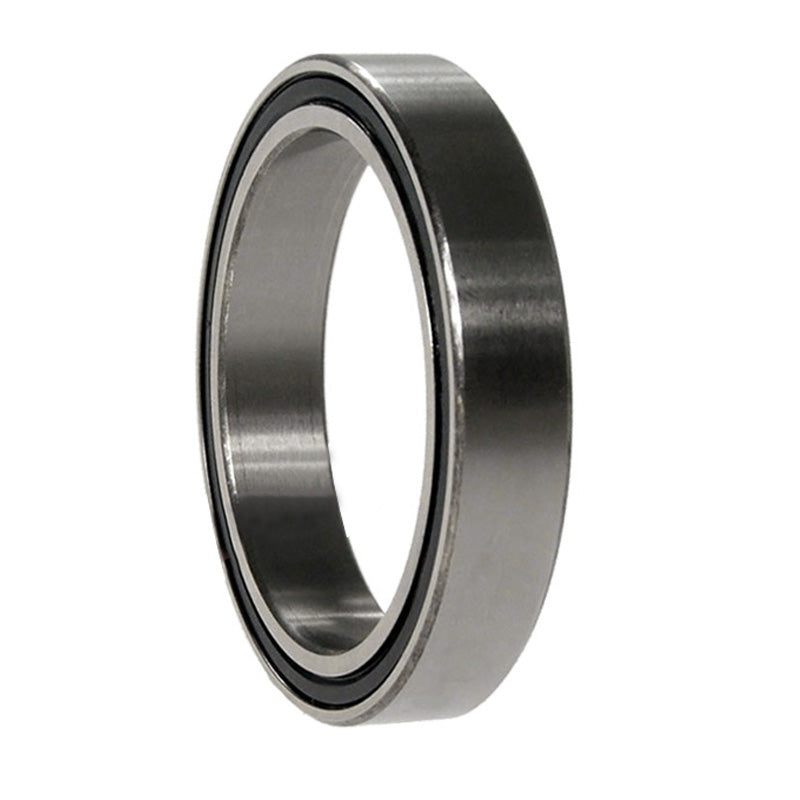

Budget 3809B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 45x58x10mm
- Regular price
- €30.87 ex VAT
- Sale price
- €30,87
- Regular price
-
In stock
Quantity Price Breaks
10
€27.47
19
€25.93
29
€25.62
39
€25.31
49
€25.00
74
€24.70
99
€23.15
199
€22.84
249
€22.54
499
€22.23
999
€21.61
SKU:
3809.B.2RSR.TVH.EU
Budget 3809B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 45x58x10mm
- Regular price
- €30.87 ex VAT
- Sale price
- €30,87
- Regular price
-
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Technical
| d | = | 45mm |
| D | = | 58mm |
| B | = | 10mm |
| a | = | 24.2mm |
| d1 max | = | 48.6mm |
| Da max | = | 56mm |
| da min | = | 47mm |
| ra max | = | 0.3mm |
| r min | = | 0.3mm |
| Contact angle & | = | alpha |
| = | 25& | |
| deg | = | |
| Weight | = | 0.053 kg |
| Dynamic load Cr | = | 7200 N |
| Static load Cor | = | 8300 N |
| Fatigue limit load Cur | = | 465 N |
| Reference speed | = | 5000 rpm |
| Limiting Speed | = | 5700 rpm |
