SKU: 40-2-SYN-NO30-RENOLD

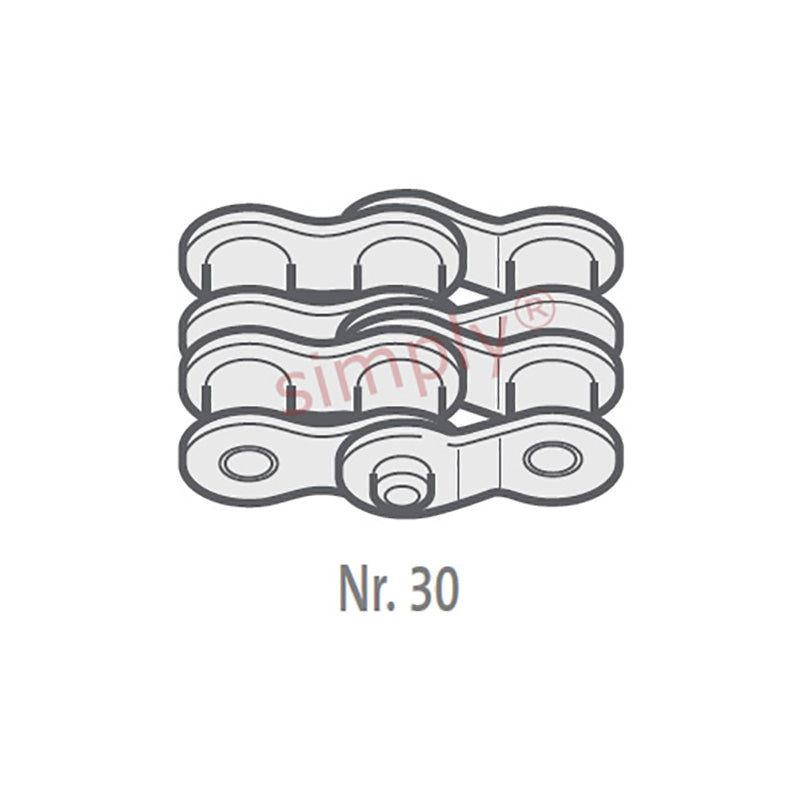

Renold Synergy 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €50.05 ex VAT
- Sale price
- €50,05
- Regular price
-
Not in stock
Quantity Price Breaks
2
€44.54
5
€42.04
10
€41.54
29
€41.04
49
€40.54
75
€40.04
100
€37.54
200
€37.04
250
€36.54
500
€36.04
1000
€35.04
SKU:
40-2-SYN-NO30-RENOLD
Renold Synergy 40-2-NO30 ANSI / AS Duplex Chain Double Cranked Link 1/2 inch Pitch
- Regular price
- €50.05 ex VAT
- Sale price
- €50,05
- Regular price
-
Technical
| Pitch (A) | = | 0.5 inch |
| Pitch (A) | = | 12.7mm |
| Inside Width min (B) | = | 7.85mm |
| Roller Diameter max (C) | = | 7.92mm |
| Plate Height max (D) | = | 11.2mm |
| Plate Width Inner max (E) | = | 1.55mm |
| Plate Width Outer max (F) | = | 1.55mm |
| Pin Diameter max (G) | = | 3.97mm |
| Pin Length max (H2) | = | 30.8mm |
| Connecting Link Extension max (J) | = | 2.1mm |
| Transverse Pitch nom (K) | = | 14.38mm |
| ISO606 Tensile Strength min | = | 27800 N |
| Weight | = | 0.02kg/m |
