SKU: 40B-3-NO12-MB
Branded 40B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2-1/2 inch Pitch
- Regular price
- €112.74 ex VAT
- Sale price
- €112,74
- Regular price
-
Not in stock
Quantity Price Breaks
2
€100.34
5
€94.70
10
€93.57
29
€92.45
49
€91.32
75
€90.19
100
€84.56
200
€83.43
250
€82.30
500
€81.17
1000
€78.92
SKU:
40B-3-NO12-MB
Branded 40B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2-1/2 inch Pitch
- Regular price
- €112.74 ex VAT
- Sale price
- €112,74
- Regular price
-
Description

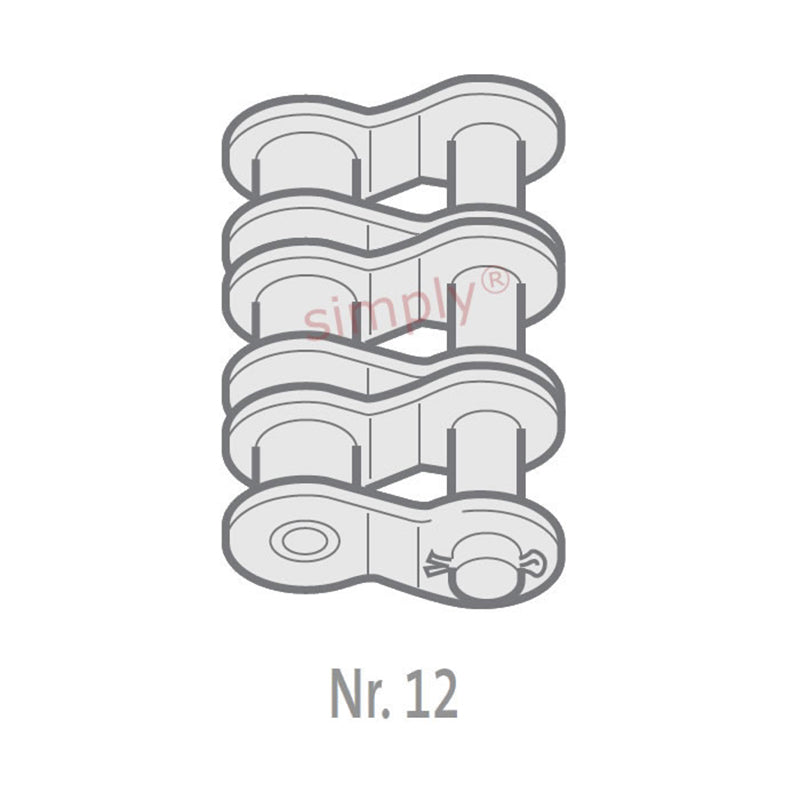

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Technical
| Pitch (A) | = | 2.5 inch |
| Pitch (A) | = | 63.5mm |
| Inside Width min (B) | = | 39.3mm |
| Roller Diameter max (C) | = | 39.37mm |
| Plate Height max (D) | = | 52.96mm |
| Plate Width Inner max (E) | = | 8.13mm |
| Plate Width Outer max (F) | = | 8.13mm |
| Pin Diameter max (G) | = | 22.89mm |
| Pin Length max (H3) | = | 222.8mm |
| Connecting Link Extension max (J) | = | 9.5mm |
| ISO606 Tensile Strength min | = | 950000 N |
| Weight | = | 2kg/m |
