SKU: 4306ATN9-SKF

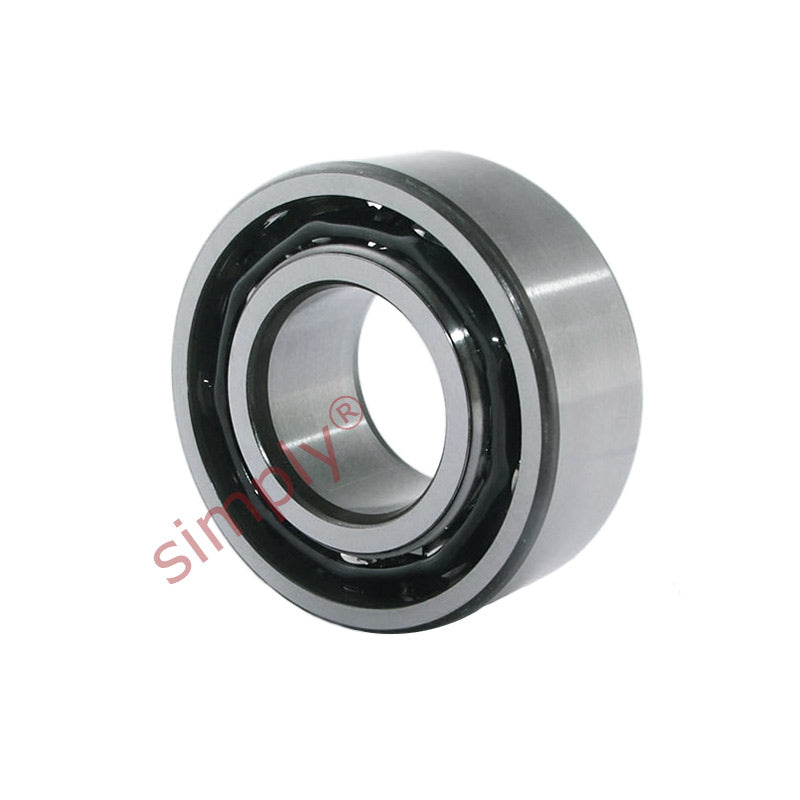

SKF 4306ATN9 Double Row Deep Groove Ball Bearing 30x72x27mm
- Regular price
- €58.31 ex VAT
- Sale price
- €58,31
- Regular price
-
Quantity Price Breaks
SKF 4306ATN9 Double Row Deep Groove Ball Bearing 30x72x27mm
- Regular price
- €58.31 ex VAT
- Sale price
- €58,31
- Regular price
-
Description
SKF Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability.
Benefits: Higher axial and radial load than single row, same bore and diameter as single row equivalent size.

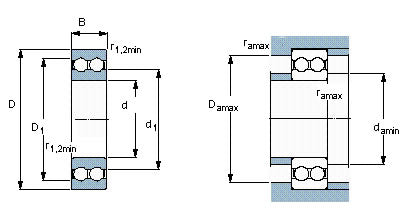

Technical
| d | = | 30mm |
| D | = | 72mm |
| B | = | 27mm |
| Dynamic load Cr | = | 41 kN |
| Static load Cor | = | 30 kN |
| Fatigue load limit Pu | = | 1.27 kN |
| Reference speed | = | 16000 rpm |
| Limiting speed | = | 8500 rpm |
| Weight | = | 0.5 kg |
| d1 | = | 43.9mm |
| D1 | = | 58.1mm |
| r1r2 min | = | 1.1mm |
| da min | = | 37mm |
| Da max | = | 65mm |
| ra max | = | 1mm |
| kr | = | 0.06 |
| fo | = | 13 |
