SKU: 50-1-NO30-MB
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €6.14 ex VAT
- Sale price
- €6,14
- Regular price
-
In stock
Quantity Price Breaks
2
€5.46
5
€5.16
10
€5.10
29
€5.03
49
€4.97
75
€4.91
100
€4.61
200
€4.54
250
€4.48
500
€4.42
1000
€4.30
SKU:
50-1-NO30-MB
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- €6.14 ex VAT
- Sale price
- €6,14
- Regular price
-
Description

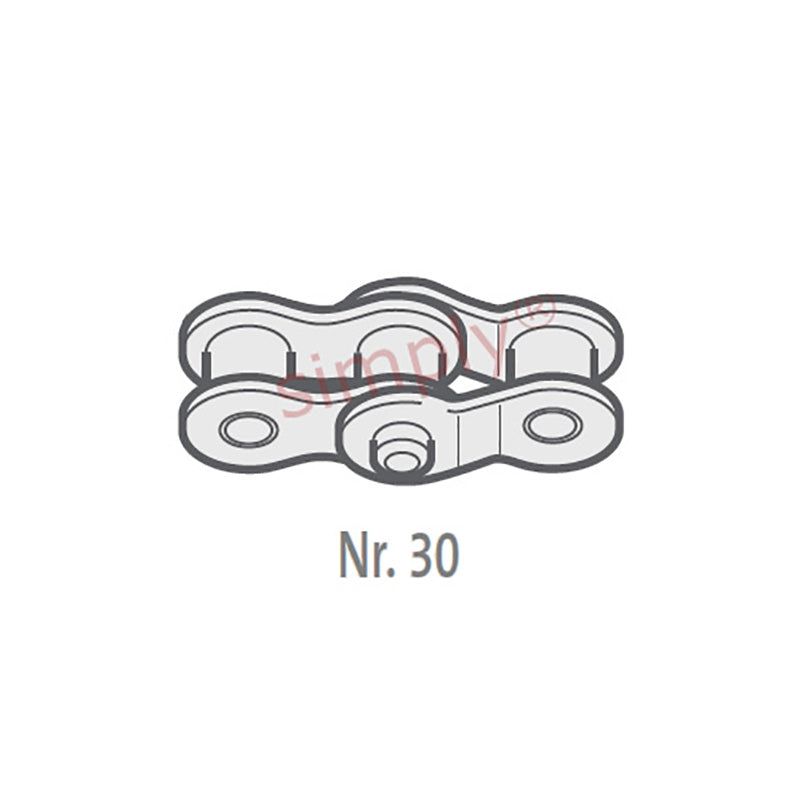

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 15.09mm |
| Plate Width Inner max (E) | = | 2mm |
| Plate Width Outer max (F) | = | 2mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 20.9mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| ISO606 Tensile Strength min | = | 21800 N |
| Weight | = | 0.015kg/m |
