SKU: 50-2-SYNERGY-10FT-RENOLD

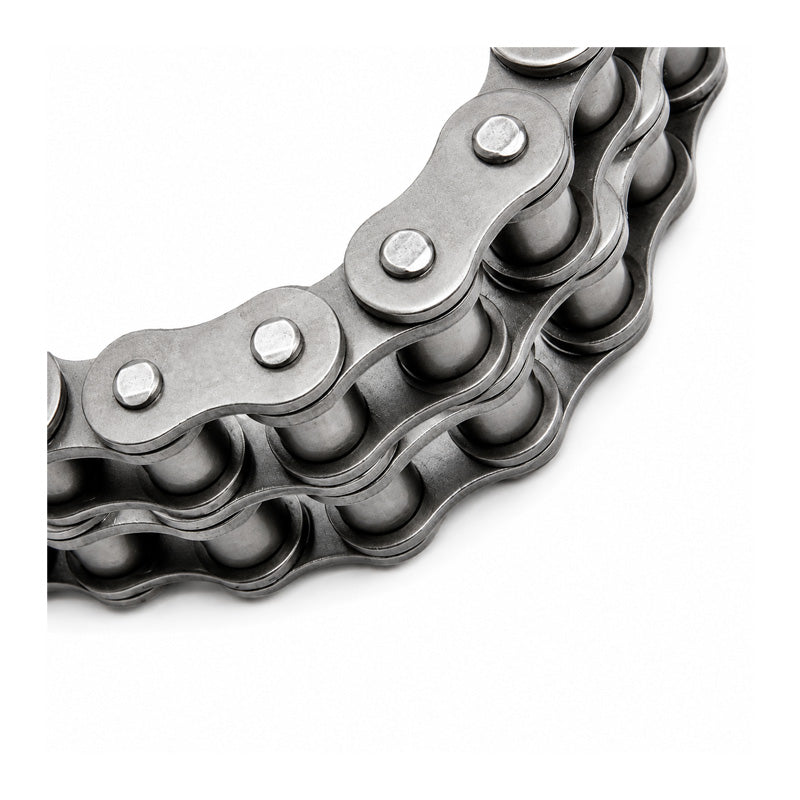

Renold Synergy 50-2 ANSI / AS Duplex Roller Chain 5/8 inch Pitch - 10 Feet Length
- Regular price
- €643.37 ex VAT
- Sale price
- €643,37
- Regular price
-
In stock
Quantity Price Breaks
10+
€572.60
19+
€540.43
29+
€534.00
39+
€527.56
49+
€521.13
74+
€514.70
99+
€482.53
199+
€476.09
249+
€469.66
499+
€463.23
999+
€450.36
SKU:
50-2-SYNERGY-10FT-RENOLD
Renold Synergy 50-2 ANSI / AS Duplex Roller Chain 5/8 inch Pitch - 10 Feet Length
- Regular price
- €643.37 ex VAT
- Sale price
- €643,37
- Regular price
-
Description
Renold Synergy High Performance Chain: Renold Synergy chain will last three times longer in normal working conditions than your current non-Renold chain or your next chain is free. It's that simple. If the working life of your non Renold Chain is unsatisfactory, try Renold Synergy®. You will see productivity increase, downtime cut and costs saved. Renold are so confident that their chain will significantly outlast any other non-Renold brand chain that we will give you a replacement chain free*. There has never been a better time to specify Renold Synergy® - the only high performance transmission chain.
* Subject to site visit from a Renold Service Engineer
Renold Synergy® has transformed the productivity and efficiency of all these industrial applications and more.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 38.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 1.98kg/m |
