SKU: 51103-CDX

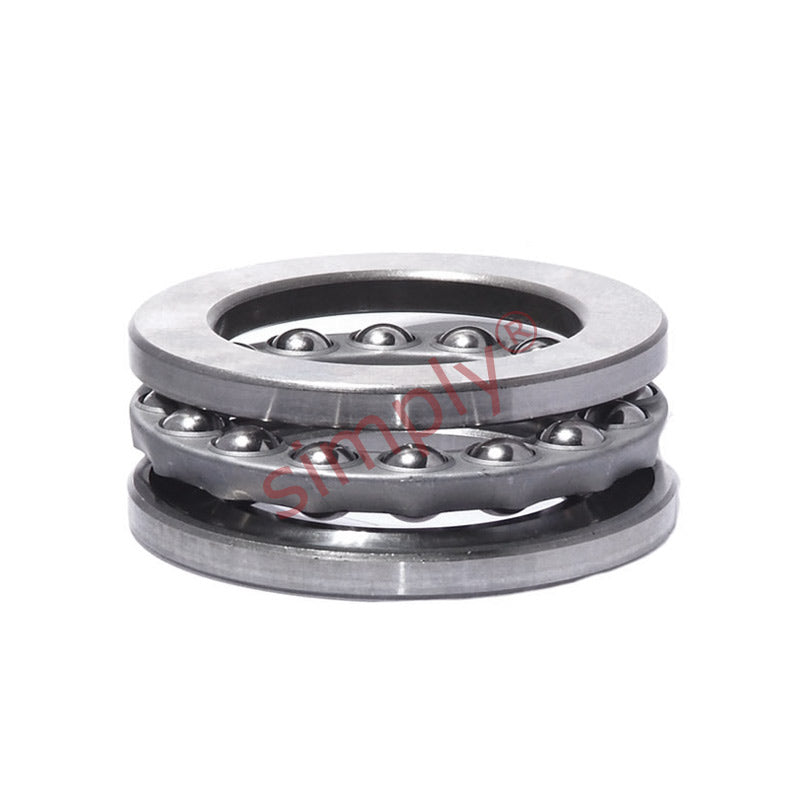

Codex 51103 Single Thrust Ball Bearing 17x30x9mm
- Regular price
- €11.02 ex VAT
- Sale price
- €11,02
- Regular price
-
In stock
Quantity Price Breaks
10
€9.81
19
€9.26
29
€9.15
39
€9.04
49
€8.93
74
€8.82
99
€8.27
199
€8.15
249
€8.04
499
€7.93
999
€7.71
SKU:
51103-CDX
Codex 51103 Single Thrust Ball Bearing 17x30x9mm
- Regular price
- €11.02 ex VAT
- Sale price
- €11,02
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 17 |
| D | = | 30 |
| H | = | 9 |
| Dynamic Load | = | 11.4 kN |
| Static Load | = | 21.2 kN |
| Pu | = | 0.78 |
| A | = | 0.0023 |
| Ref Speed | = | 8500 rpm |
| Limiting Speed | = | 12000 rpm |
| kg | = | 0.025 |
| d1 | = | 30 |
| D1 | = | 18 |
| r1r2 min | = | 0.3 |
| da min | = | 25 |
| Da max | = | 22 |
| ra max | = | 0.3 |
