SKU: 51104-CDX

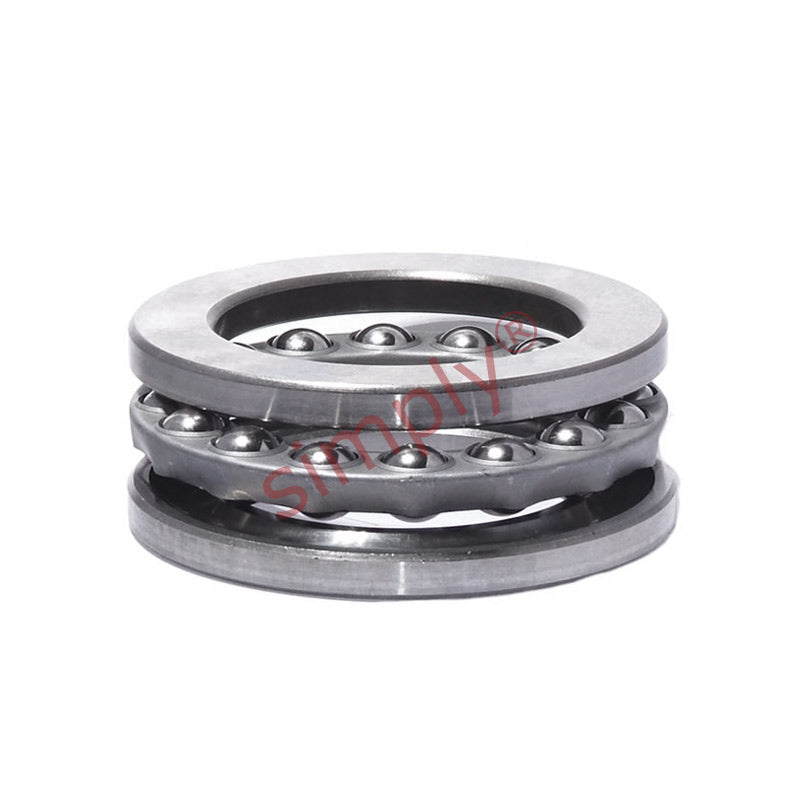

Codex 51104 Single Thrust Ball Bearing 20x35x10mm
- Regular price
- €11.04 ex VAT
- Sale price
- €11,04
- Regular price
-
Not in stock
Quantity Price Breaks
10
€9.83
19
€9.27
29
€9.16
39
€9.05
49
€8.94
74
€8.83
99
€8.28
199
€8.17
249
€8.06
499
€7.95
999
€7.73
SKU:
51104-CDX
Codex 51104 Single Thrust Ball Bearing 20x35x10mm
- Regular price
- €11.04 ex VAT
- Sale price
- €11,04
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 20 |
| D | = | 35 |
| H | = | 10 |
| Dynamic Load | = | 15.1 kN |
| Static Load | = | 29 kN |
| Pu | = | 1.08 |
| A | = | 0.0044 |
| Ref Speed | = | 7500 rpm |
| Limiting Speed | = | 10000 rpm |
| kg | = | 0.037 |
| d1 | = | 35 |
| D1 | = | 21 |
| r1r2 min | = | 0.3 |
| da min | = | 29 |
| Da max | = | 26 |
| ra max | = | 0.3 |
