SKU: 51202-CDX

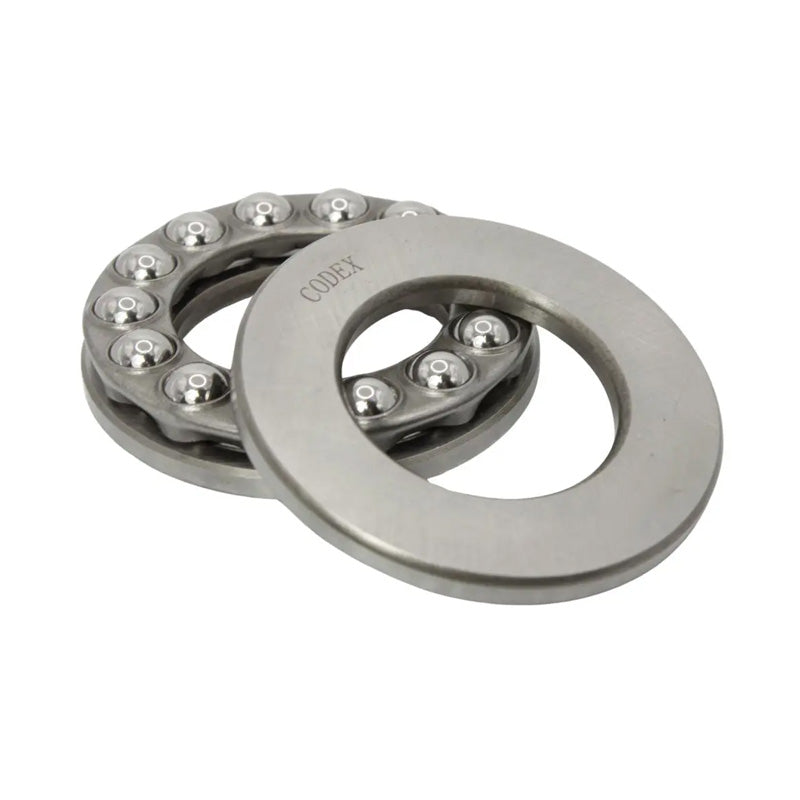

Codex 51202 Single Thrust Ball Bearing 15x32x12mm
- Regular price
- €14.53 ex VAT
- Sale price
- €14,53
- Regular price
-
In stock
Quantity Price Breaks
10
€12.93
19
€12.21
29
€12.06
39
€11.91
49
€11.77
74
€11.62
99
€10.90
199
€10.75
249
€10.61
499
€10.46
999
€10.17
SKU:
51202-CDX
Codex 51202 Single Thrust Ball Bearing 15x32x12mm
- Regular price
- €14.53 ex VAT
- Sale price
- €14,53
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 15 |
| D | = | 32 |
| H | = | 12 |
| Dynamic Load | = | 16.5 kN |
| Static Load | = | 27 kN |
| Pu | = | 1 |
| A | = | 0.0038 |
| Ref Speed | = | 7000 rpm |
| Limiting Speed | = | 10000 rpm |
| kg | = | 0.046 |
| d1 | = | 32 |
| D1 | = | 17 |
| r1r2 min | = | 0.6 |
| da min | = | 25 |
| Da max | = | 22 |
| ra max | = | 0.6 |
