SKU: 51204-CDX

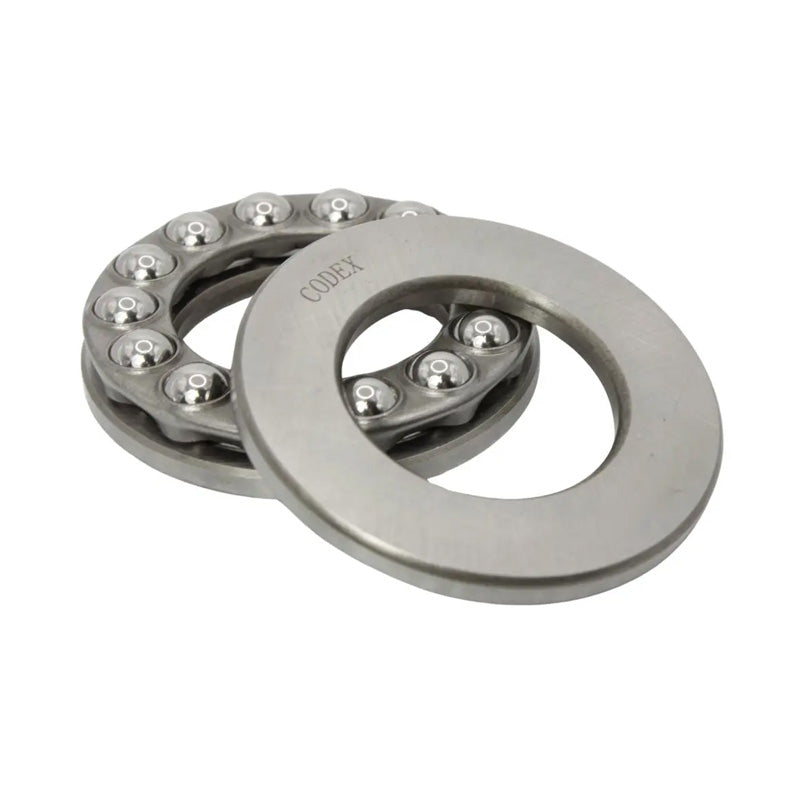

Codex 51204 Single Thrust Ball Bearing 20x40x14mm
- Regular price
- €15.67 ex VAT
- Sale price
- €15,67
- Regular price
-
Not in stock
Quantity Price Breaks
10
€13.95
19
€13.16
29
€13.01
39
€12.85
49
€12.69
74
€12.54
99
€11.75
199
€11.60
249
€11.44
499
€11.28
999
€10.97
SKU:
51204-CDX
Codex 51204 Single Thrust Ball Bearing 20x40x14mm
- Regular price
- €15.67 ex VAT
- Sale price
- €15,67
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 20 |
| D | = | 40 |
| H | = | 14 |
| Dynamic Load | = | 22.5 kN |
| Static Load | = | 40.5 kN |
| Pu | = | 1.53 |
| A | = | 0.0085 |
| Ref Speed | = | 6000 rpm |
| Limiting Speed | = | 8000 rpm |
| kg | = | 0.083 |
| d1 | = | 40 |
| D1 | = | 22 |
| r1r2 min | = | 0.6 |
| da min | = | 32 |
| Da max | = | 28 |
| ra max | = | 0.6 |
