SKU: 51211-CDX

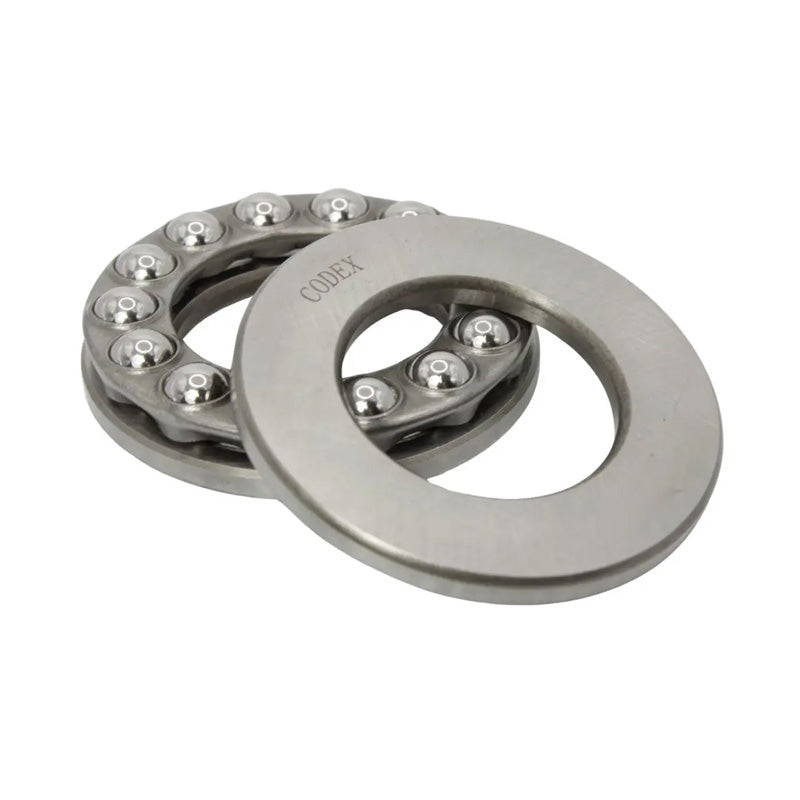

Codex 51211 Single Thrust Ball Bearing 55x90x25mm
- Regular price
- €45.88 ex VAT
- Sale price
- €45,88
- Regular price
-
In stock
Quantity Price Breaks
10
€40.83
19
€38.54
29
€38.08
39
€37.62
49
€37.16
74
€36.70
99
€34.41
199
€33.95
249
€33.49
499
€33.03
999
€32.12
SKU:
51211-CDX
Codex 51211 Single Thrust Ball Bearing 55x90x25mm
- Regular price
- €45.88 ex VAT
- Sale price
- €45,88
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 55 |
| D | = | 90 |
| H | = | 25 |
| Dynamic Load | = | 61.8 kN |
| Static Load | = | 146 kN |
| Pu | = | 5.4 |
| A | = | 0.11 |
| Ref Speed | = | 2800 rpm |
| Limiting Speed | = | 4000 rpm |
| kg | = | 0.59 |
| d1 | = | 90 |
| D1 | = | 57 |
| r1r2 min | = | 1 |
| da min | = | 76 |
| Da max | = | 69 |
| ra max | = | 1 |
