SKU: 51213-CDX

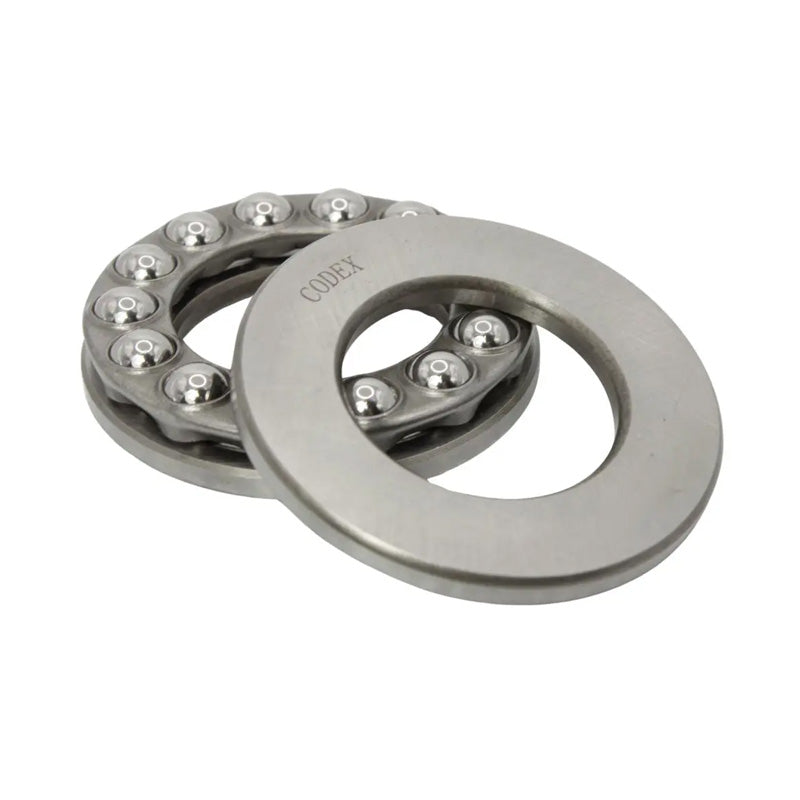

Codex 51213 Single Thrust Ball Bearing 65x100x27mm
- Regular price
- €58.59 ex VAT
- Sale price
- €58,59
- Regular price
-
In stock
Quantity Price Breaks
10
€52.15
19
€49.22
29
€48.63
39
€48.04
49
€47.46
74
€46.87
99
€43.94
199
€43.36
249
€42.77
499
€42.18
999
€41.01
SKU:
51213-CDX
Codex 51213 Single Thrust Ball Bearing 65x100x27mm
- Regular price
- €58.59 ex VAT
- Sale price
- €58,59
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 65 |
| D | = | 100 |
| H | = | 27 |
| Dynamic Load | = | 63.7 kN |
| Static Load | = | 163 kN |
| Pu | = | 6 |
| A | = | 0.14 |
| Ref Speed | = | 2600 rpm |
| Limiting Speed | = | 3600 rpm |
| kg | = | 0.78 |
| d1 | = | 100 |
| D1 | = | 67 |
| r1r2 min | = | 1 |
| da min | = | 86 |
| Da max | = | 79 |
| ra max | = | 1 |
