SKU: 51305-CDX

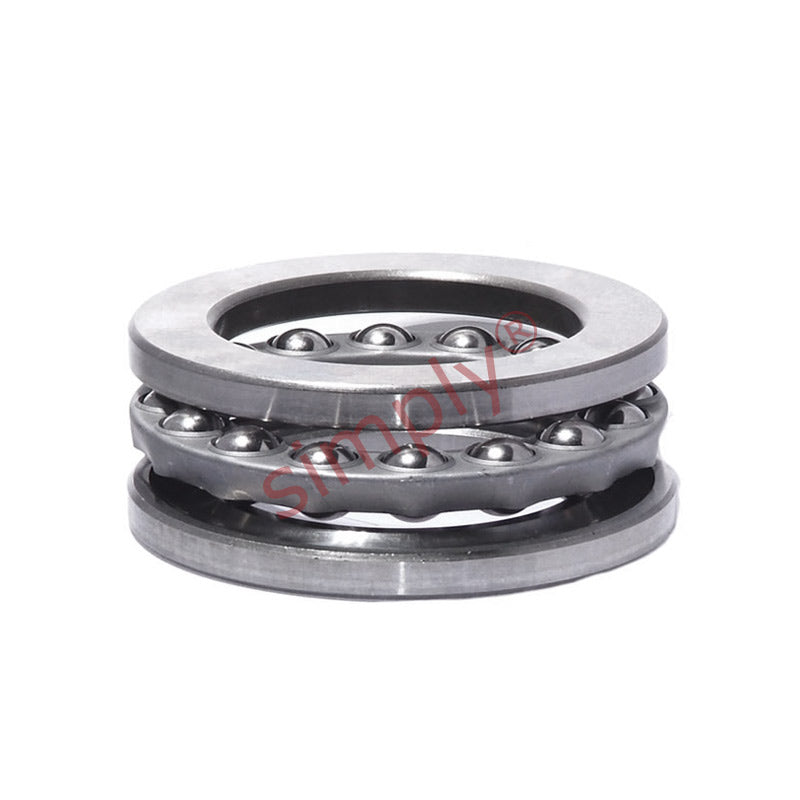

Codex 51305 Single Thrust Ball Bearing 25x52x18mm
- Regular price
- €24.11 ex VAT
- Sale price
- €24,11
- Regular price
-
In stock
Quantity Price Breaks
10
€21.46
19
€20.25
29
€20.01
39
€19.77
49
€19.53
74
€19.29
99
€18.08
199
€17.84
249
€17.60
499
€17.36
999
€16.88
SKU:
51305-CDX
Codex 51305 Single Thrust Ball Bearing 25x52x18mm
- Regular price
- €24.11 ex VAT
- Sale price
- €24,11
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 25 |
| D | = | 52 |
| H | = | 18 |
| Dynamic Load | = | 34.5 kN |
| Static Load | = | 60 kN |
| Pu | = | 2.24 |
| A | = | 0.018 |
| Ref Speed | = | 4500 rpm |
| Limiting Speed | = | 6300 rpm |
| kg | = | 0.17 |
| d1 | = | 52 |
| D1 | = | 27 |
| r1r2 min | = | 1 |
| da min | = | 41 |
| Da max | = | 36 |
| ra max | = | 1 |
