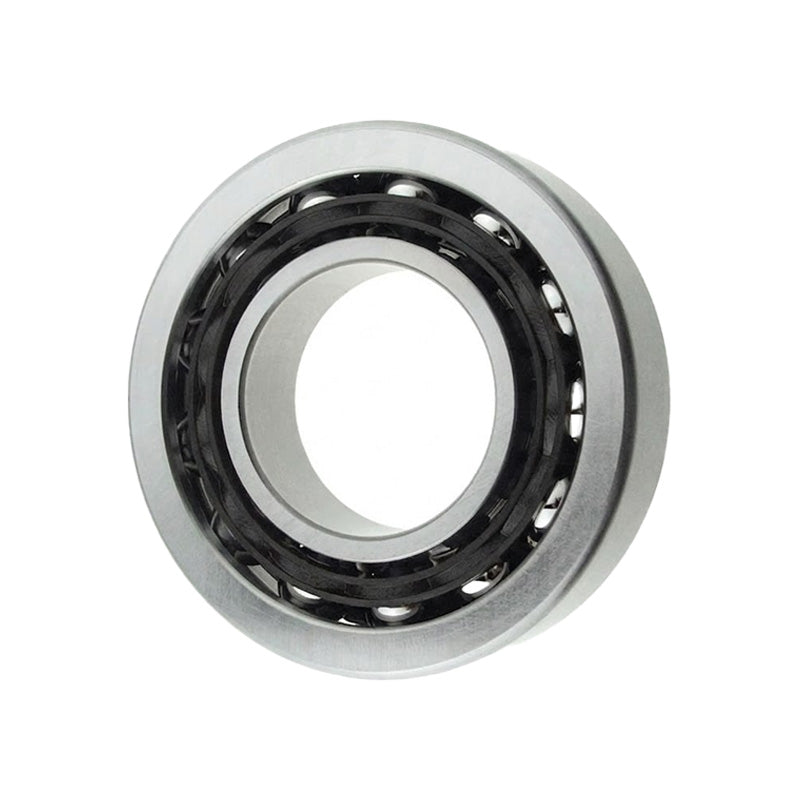

SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30

SKU: 5210-EE-G15

SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30

€36.70 ex VAT
€36,70
ex VAT
Equivalent to: 32102RS 52102RS
In stock

Quantity Price Breaks

10 €32.66
19 €30.83
29 €30.46
39 €30.09
49 €29.73
74 €29.36
99 €27.53
199 €27.16
249 €26.79
499 €26.42
999 €25.69
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30
SKU: 5210-EE-G15

SNR 5210EEG15 Rubber Sealed Double Row Angular Contact Ball Bearing 50x90x30

€36.70 ex VAT
€36,70
ex VAT

Description

Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads


Click and Drag to Zoom More
Tick Transmission and gearboxes
Tick Cranes, elevator and lifting equipment
Tick Agricultural, pumps, mining
Tick Rail and transport use
Tick General engineering applications
Tick Marine and Shipping
Tick Great value quality parts dispatched the same day

Supplied from the Worlds Leading Bearing Manufacturers
Supplied in the world's leading bearing brands

Technical

d = 50mm
D = 90mm
B = 30.2mm
Dynamic Load = 48.5 kN
Static Load = 42.2 kN
Fatigue Load Limit Cu = 2.55 kN
Weight = 0.8kg
d1 = 62mm
D1 = 80.6mm
a = 45.5mm
da min = 56.5mm
da max = 62mm
Da max = 83.5mm
ra min = 1mm
