SKU: 52307.MB

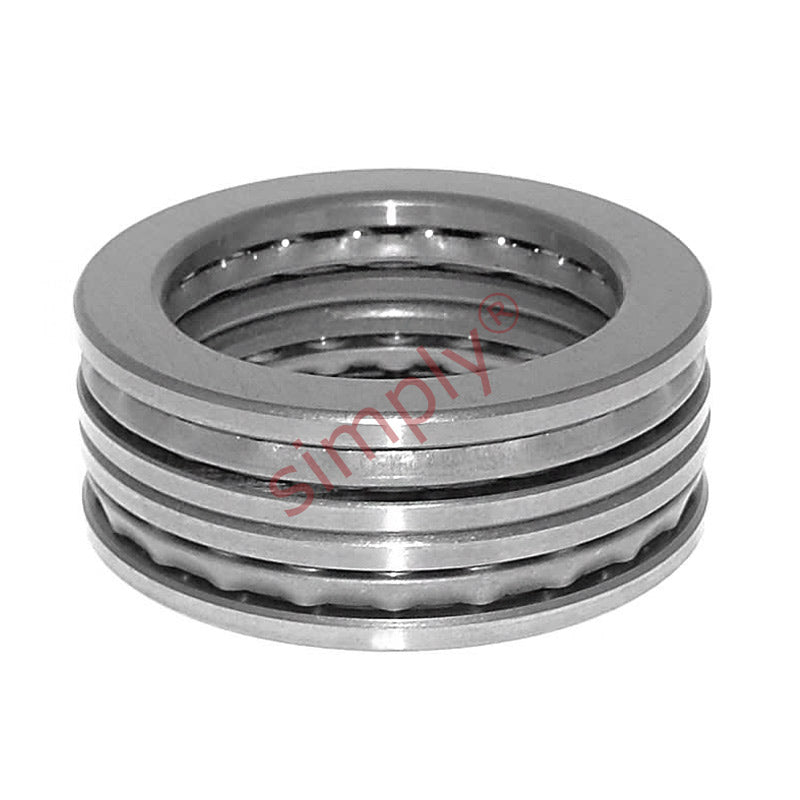

52307 Double Thrust Ball Bearing with Flat Seats 30x68x44mm
- Regular price
- €98.80 ex VAT
- Sale price
- €98,80
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
€87.93
19
€82.99
29
€82.00
39
€81.02
49
€80.03
74
€79.04
99
€74.10
199
€73.11
249
€72.12
499
€71.14
999
€69.16
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 30mm |
| D | = | 68mm |
| H | = | 44mm |
| Dynamic load C | = | 49.4 kN |
| Static load Co | = | 96.5 kN |
| Fatigue load Pu | = | 3.55 kN |
| Minimum load factor A | = | 0.048 |
| Reference speed | = | 3200 rpm |
| Limiting speed | = | 4500 rpm |
| Weight | = | 0.68 kg |
| D1 | = | 37mm |
| B | = | 10mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.3mm |
| da | = | 35mm |
| Da max | = | 48mm |
| ra max | = | 1mm |
| rb max | = | 0.3mm |
