SKU: 52309.MB

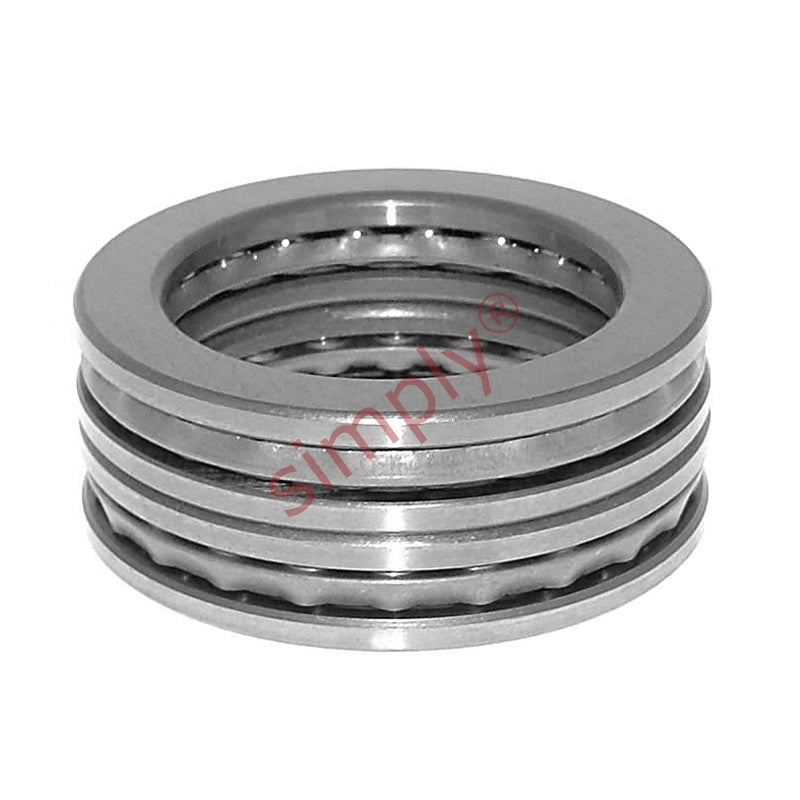

52309 Double Thrust Ball Bearing with Flat Seats 35x85x52mm
- Regular price
- €148.20 ex VAT
- Sale price
- €148,20
- Regular price
-
Not in stock
Quantity Price Breaks
10
€131.90
19
€124.49
29
€123.01
39
€121.52
49
€120.04
74
€118.56
99
€111.15
199
€109.67
249
€108.19
499
€106.70
999
€103.74
SKU:
52309.MB
52309 Double Thrust Ball Bearing with Flat Seats 35x85x52mm
- Regular price
- €148.20 ex VAT
- Sale price
- €148,20
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 35mm |
| D | = | 85mm |
| H | = | 52mm |
| Dynamic load C | = | 76.1 kN |
| Static load Co | = | 153 kN |
| Fatigue load Pu | = | 5.6 kN |
| Minimum load factor A | = | 0.12 |
| Reference speed | = | 2800 rpm |
| Limiting speed | = | 4000 rpm |
| Weight | = | 1.25 kg |
| D1 | = | 47mm |
| B | = | 12mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.6mm |
| da | = | 45mm |
| Da max | = | 61mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
