SKU: 52409-EU

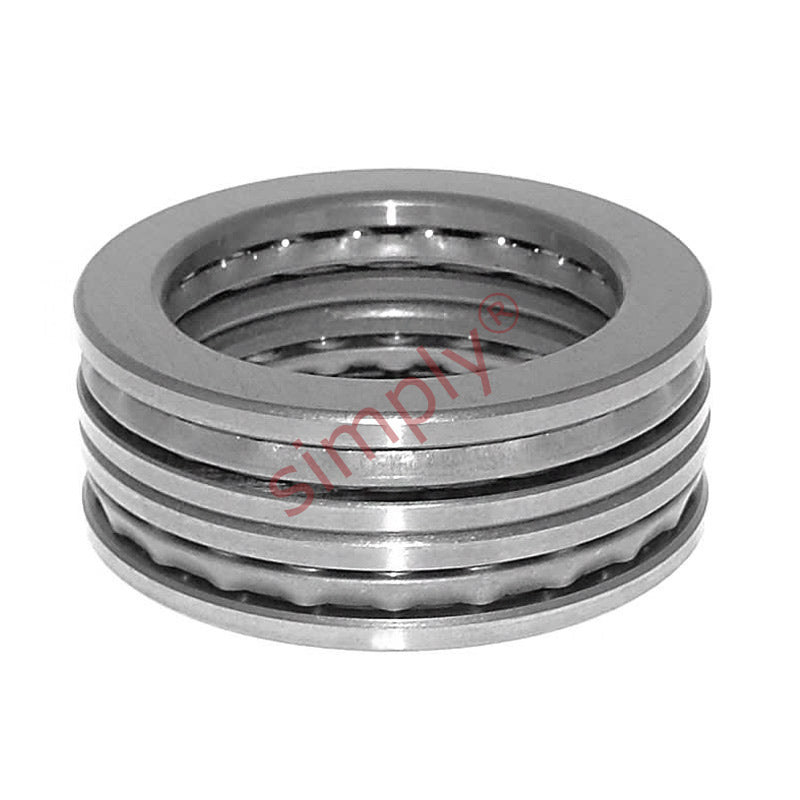

52409 Budget Double Thrust Ball Bearing with Flat Seats 35x100x72mm
- Regular price
- €293.42 ex VAT
- Sale price
- €293,42
- Regular price
-
Not in stock
Quantity Price Breaks
10
€261.14
19
€246.47
29
€243.54
39
€240.60
49
€237.67
74
€234.74
99
€220.07
199
€217.13
249
€214.20
499
€211.26
999
€205.39
SKU:
52409-EU
52409 Budget Double Thrust Ball Bearing with Flat Seats 35x100x72mm
- Regular price
- €293.42 ex VAT
- Sale price
- €293,42
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 35mm |
| D | = | 100mm |
| H | = | 72mm |
| Dynamic load C | = | 130 kN |
| Static load Co | = | 265 kN |
| Fatigue load Pu | = | 9.8 kN |
| Minimum load factor A | = | 0.37 |
| Reference speed | = | 2200 rpm |
| Limiting speed | = | 3000 rpm |
| Weight | = | 2.7 kg |
| D1 | = | 47mm |
| B | = | 17mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 0.6mm |
| da | = | 45mm |
| Da max | = | 67mm |
| ra max | = | 1mm |
| rb max | = | 0.6mm |
