53217 Budget Single Thrust Ball Bearing with Spherical Housing Seat U217 85x125x37mm
- Regular price
- €124.58 ex VAT
- Sale price
- €124,58
- Regular price
-
Not in stock
Quantity Price Breaks
10
€110.88
19
€104.65
29
€103.40
39
€102.16
49
€100.91
74
€99.66
99
€93.44
199
€92.19
249
€90.94
499
€89.70
999
€87.21
SKU:
53217+U217-EU
53217 Budget Single Thrust Ball Bearing with Spherical Housing Seat U217 85x125x37mm
- Regular price
- €124.58 ex VAT
- Sale price
- €124,58
- Regular price
-
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |

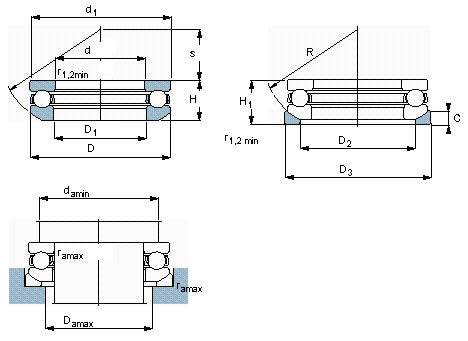

Technical
| d | = | 85mm |
| D | = | 125mm |
| H1 | = | 37mm |
| Dynamic load C | = | 97.5 kN |
| Static load Co | = | 275 kN |
| Fatigue load limit Pu | = | 9.8 kN |
| Minimum load factor A | = | 0.39 |
| Reference speed | = | 2200 rpm |
| Limiting Speed | = | 3000 rpm |
| Weight | = | 1.5 kg |
| Seating Washer | = | U217 |
| d1 | = | 125mm |
| D1 | = | 88mm |
| D2 | = | 105mm |
| D3 | = | 130mm |
| H | = | 33.1mm |
| C | = | 11mm |
| R | = | 100mm |
| s | = | 52mm |
| r1r2 min | = | 1mm |
| da max | = | 109mm |
| Da max | = | 105mm |
| ra max | = | 1mm |
