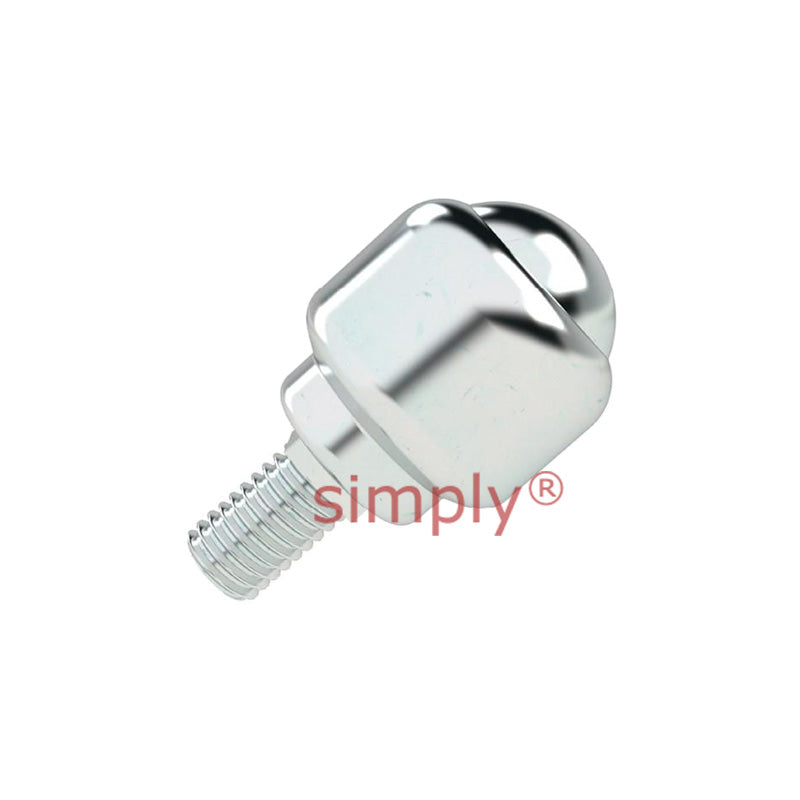

High-Performance Stem Fitting Ball Transfer Unit with 19.05mm Steel Ball - Load Capacity 30kg - Allow 2-3 Days
- Regular price
- €7.13 ex VAT
- Sale price
- €7,13
- Regular price
-
Quantity Price Breaks
High-Performance Stem Fitting Ball Transfer Unit with 19.05mm Steel Ball - Load Capacity 30kg - Allow 2-3 Days
- Regular price
- €7.13 ex VAT
- Sale price
- €7,13
- Regular price
-
Description
Threaded Ball Transfer Unit: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing steel ball running on several smaller support balls contained within a recessed zinc-plated carbon steel housing, allowing the large ball to rotate freely. Recessed threaded ball transfer Units fit into pre-defined holes and can be fitted upward or downward. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
Technical

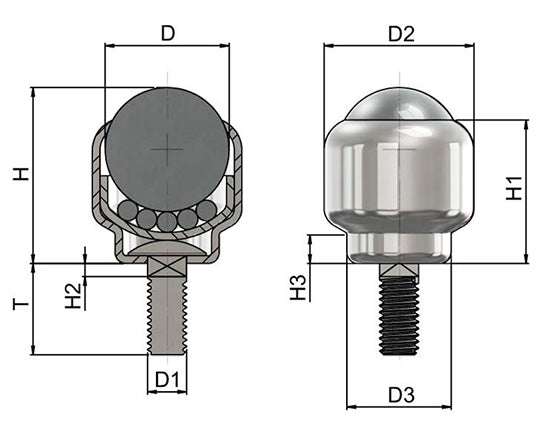

| --- | = | Dimensions |
| D | = | 19.05mm |
| D1 | = | M6 |
| D2 | = | 23mm |
| D3 | = | 17mm |
| H | = | 26mm |
| H1 | = | 22mm |
| H2 | = | 2mm |
| H3 | = | 4.5mm |
| T | = | 20mm |
| Total Length | = | 46mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 30 kg |
| Weight | = | 0.05 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Carbon Steel< |
| br> | = | Ball: Steel 9Cr180M0 |
