SKU: 569-2230

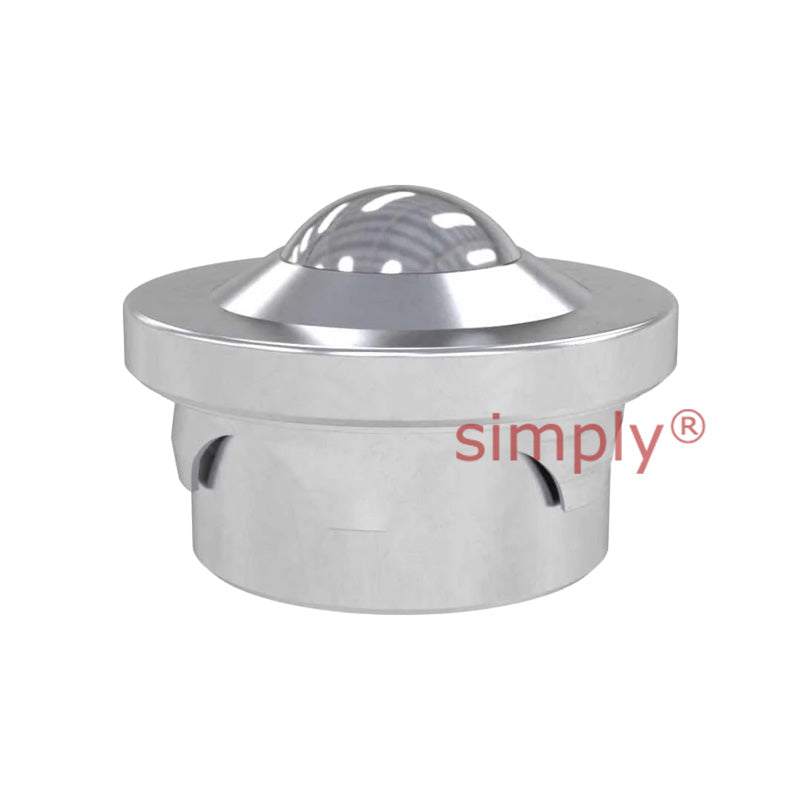

High-Performance Medium Duty Ball Transfer Unit with 30mm Steel Ball - Load Capacity 350kg - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Quantity Price Breaks
High-Performance Medium Duty Ball Transfer Unit with 30mm Steel Ball - Load Capacity 350kg - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Description
Push Fit Medium-Duty Steel Ball Transfer Unit: Push fit ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing steel ball running on several smaller support balls contained within a recessed zinc-plated case-hardened steel housing, allowing the large ball to rotate freely. Push-fit ball transfer units effortlessly slot into pre-defined holes, simplifying the assembly process. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
Technical

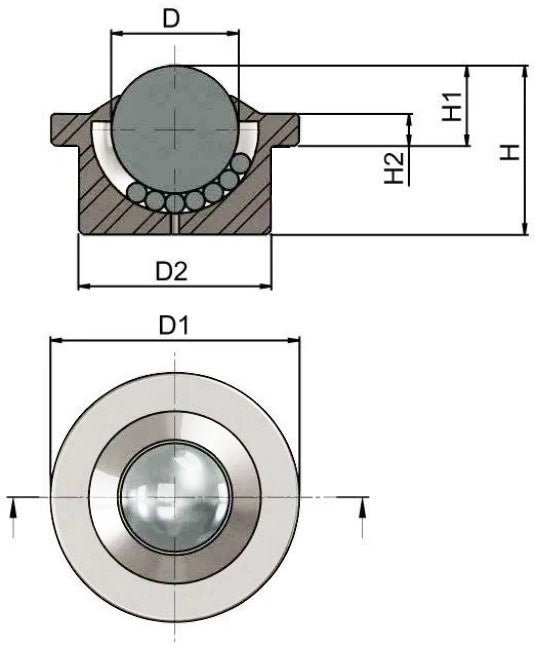

| --- | = | Dimensions |
| D | = | 30mm |
| D1 | = | 54mm |
| D2 | = | 45mm |
| H | = | 36.5mm |
| H1 | = | 14mm |
| H2 | = | 4mm |
| --- | = | Loads and Speeds |
| Max Load | = | 350 kg |
| Weight | = | 0.37 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Carbon Steel< |
| br> | = | Ball: Steel 9Cr18Mo |
