SKU: 569-425

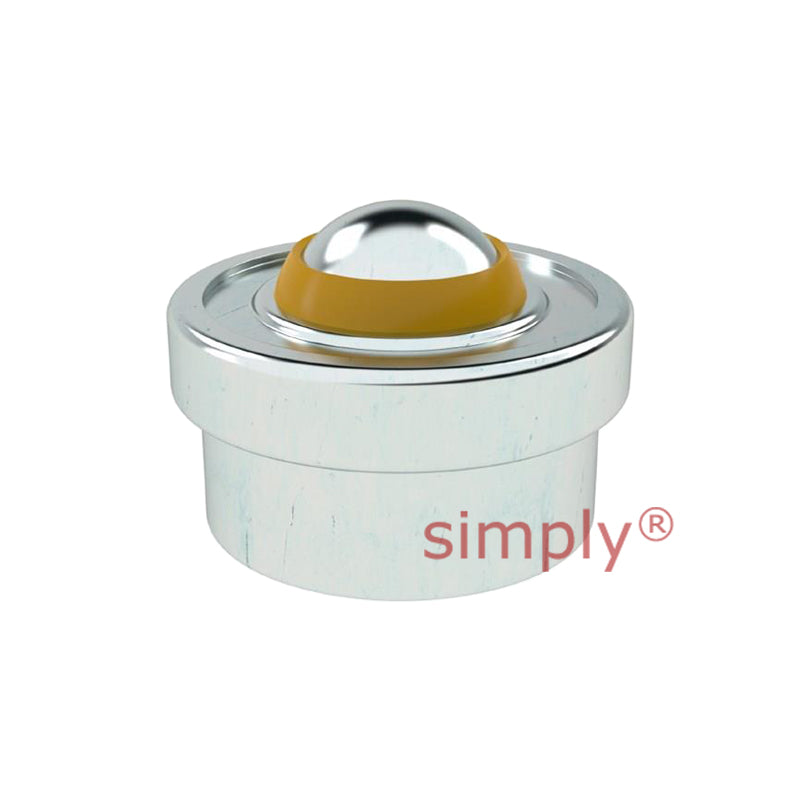

High-Performance Light Duty Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Allow 2-3 Days
- Regular price
- €16.71 ex VAT
- Sale price
- €16,71
- Regular price
-
Quantity Price Breaks
High-Performance Light Duty Spring Loaded Ball Transfer Unit with 25.4mm Steel Ball - Allow 2-3 Days
- Regular price
- €16.71 ex VAT
- Sale price
- €16,71
- Regular price
-
Description
Spring-Loaded Light-Duty Steel Ball Transfer Units: Spring-loaded ball transfer units are specialised devices designed for multi-direction materials handling solutions. They consist of a large load-bearing steel ball atop multiple smaller balls housed within a carbon steel casing, complemented by a spring mechanism beneath. These units facilitate seamless multidirectional movement, effectively transferring loads across surfaces. The incorporation of a spring-loading feature not only enhances versatility but also enables the unit to yield under heavier loads, ensuring steady and controlled manoeuvrability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
Technical

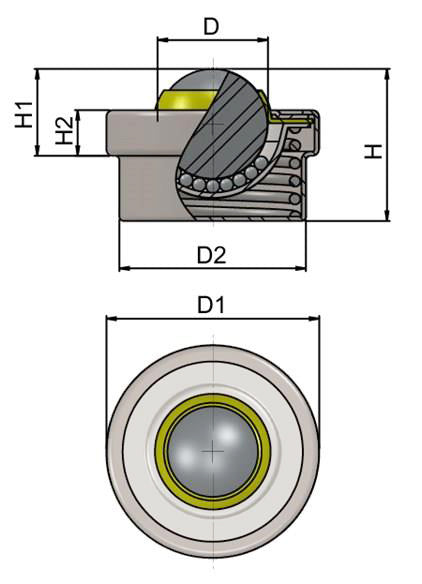

| --- | = | Dimensions |
| D | = | 25.4mm |
| H1 | = | 20mm |
| D1 | = | 49mm |
| H | = | 35mm |
| H2 | = | 10.5mm |
| D2 | = | 43mm |
| --- | = | Loads and Speeds |
| Static Load | = | 45 kg |
| Dynamic Load | = | 55 kg |
| Weight | = | 0.18 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Carbon Steel< |
| br> | = | Ball: Steel 9Cr18Mo |
