SKU: 570-102A

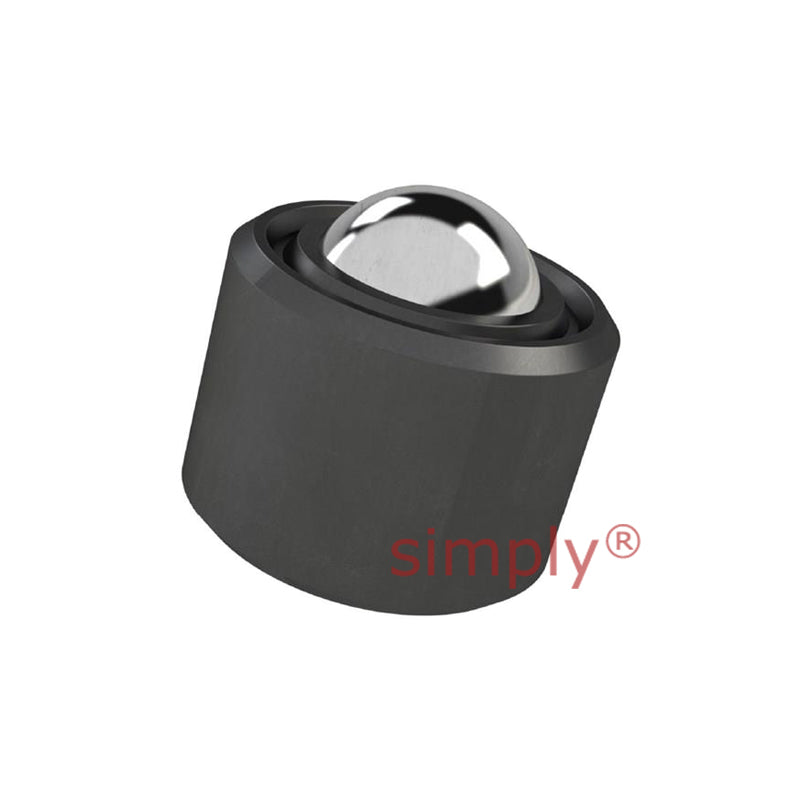

High-Performance Push Fit Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 116kg - Allow 2-3 Days
- Regular price
- €143.87 ex VAT
- Sale price
- €143,87
- Regular price
-
Quantity Price Breaks
High-Performance Push Fit Ball Transfer Unit with 25.4mm Stainless Steel Ball - Load Capacity 116kg - Allow 2-3 Days
- Regular price
- €143.87 ex VAT
- Sale price
- €143,87
- Regular price
-
Description
Push Fit High-Capacity Stainless Steel Ball Transfer Unit: Push fit ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing stainless steel ball running on several smaller support balls contained within a recessed zinc-plated mild steel housing, allowing the large ball to rotate freely. Push-fit ball transfer units effortlessly slot into pre-defined holes, simplifying the assembly process. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads. These high-capacity ball transfer units are designed to accommodate much higher loads than other units, characterized by the lowest coefficient of friction and exceptionally smooth performance.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 25.4mm |
| Ball Dia inch | = | 1 inch |
| Y mm | = | 41.3mm |
| Y inch | = | 1.625 inch |
| W mm | = | 35.6mm |
| W inch | = | 1.403 inch |
| D mm | = | 44.45mm (tol. -0.1mm) |
| D Inch | = | 1.75 inch |
| --- | = | Loads and Speeds |
| Load Capacity | = | 116kg |
| Weight | = | 0.39 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
