SKU: 570-203A

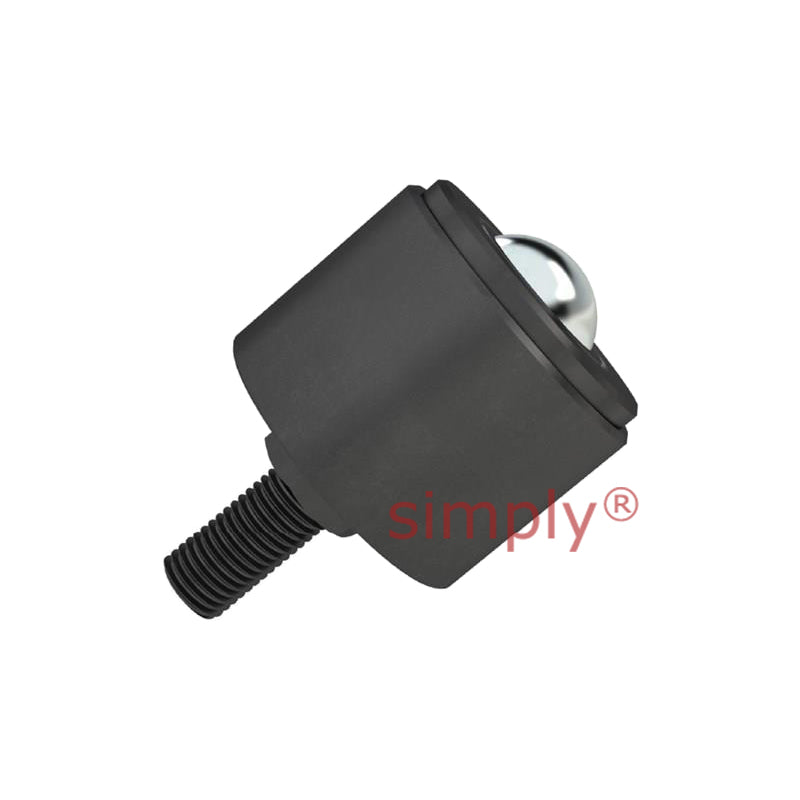

High Capacity Hex Threaded Ball Transfer Unit with 25.4mm Stainless Steel Ball 1/2 UNF Thread - Load Capacity 112kg - Allow 2-3 Days
- Regular price
- €80.71 ex VAT
- Sale price
- €80,71
- Regular price
-
Quantity Price Breaks
High Capacity Hex Threaded Ball Transfer Unit with 25.4mm Stainless Steel Ball 1/2 UNF Thread - Load Capacity 112kg - Allow 2-3 Days
- Regular price
- €80.71 ex VAT
- Sale price
- €80,71
- Regular price
-
Description
Threaded High Capacity Stainless Steel Ball Transfer Unit: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units often named recess mount ball transfer units, consist of a large load-bearing stainless steel ball running on several smaller support balls contained within a recessed zinc-plated mild steel housing, allowing the large ball to rotate freely. Recessed threaded ball transfer Units fit into pre-defined holes and can be fitted upward or downward. These high-capacity ball transfer units are designed to accommodate much higher loads than other units. They are commonly used on conveyor setups and are an ideal solution for the smooth and precise moving of loads.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 25.4mm |
| T | = | 1/2 UNF |
| Y | = | 72.3mm |
| W | = | 42.5mm |
| D | = | 44.5mm |
| L | = | 25.4mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 112 kg |
| Weight | = | 0.42 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
