SKU: 570-305

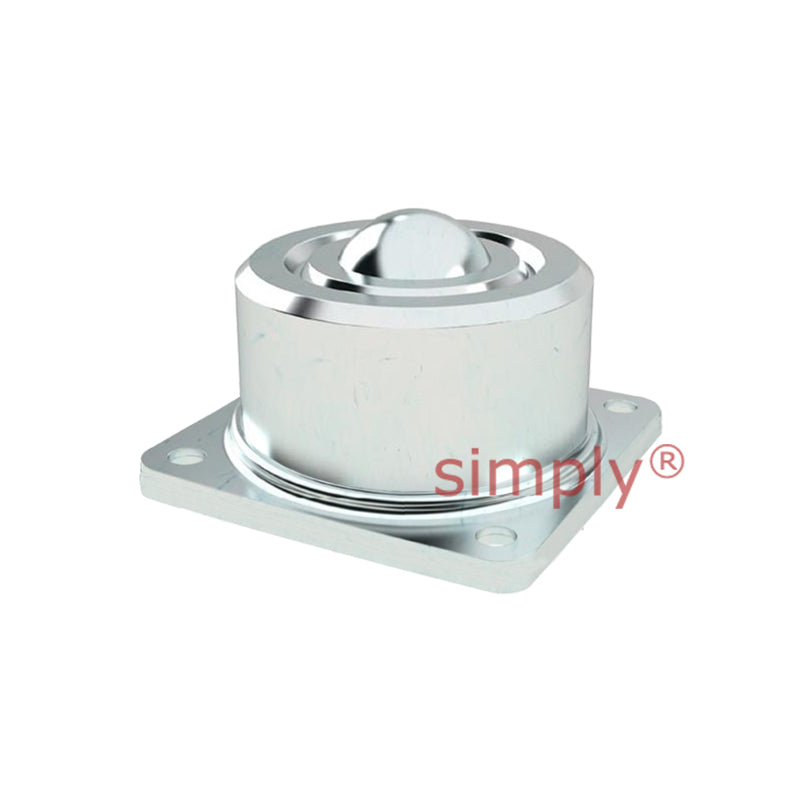

High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2000kg - Allow 2-3 Days
- Regular price
- €417.09 ex VAT
- Sale price
- €417,09
- Regular price
-
Quantity Price Breaks
High-Performance High Capacity 4 Bolt Base Mounted Square Surface Ball Transfer Unit with 50.8mm Steel Ball - Load Capacity 2000kg - Allow 2-3 Days
- Regular price
- €417.09 ex VAT
- Sale price
- €417,09
- Regular price
-
Description
Surface Fixed Base Mount Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Base mount ball transfer units are equipped with flange-mounted holes that enable users to securely anchor the unit onto the base of a flat surface, enhancing stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Easy assembly, reducing downtime.
Technical

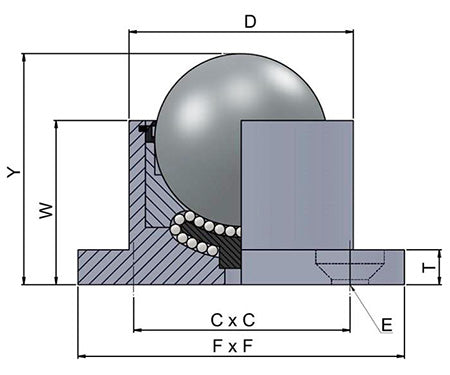

| --- | = | Dimensions |
| Ball Diameter | = | 50.8mm |
| Y | = | 98.4mm |
| W | = | 82.6mm |
| D | = | 105-111mm |
| FXF | = | 127mm |
| CXC | = | 101.6mm |
| T | = | 9.6mm |
| E | = | 4x10.3mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 2000 kg |
| Load capacity | = | 4480 lbs |
| Weight | = | 6.05 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: Steel 9Cr18Mo |
