SKU: 570-401A

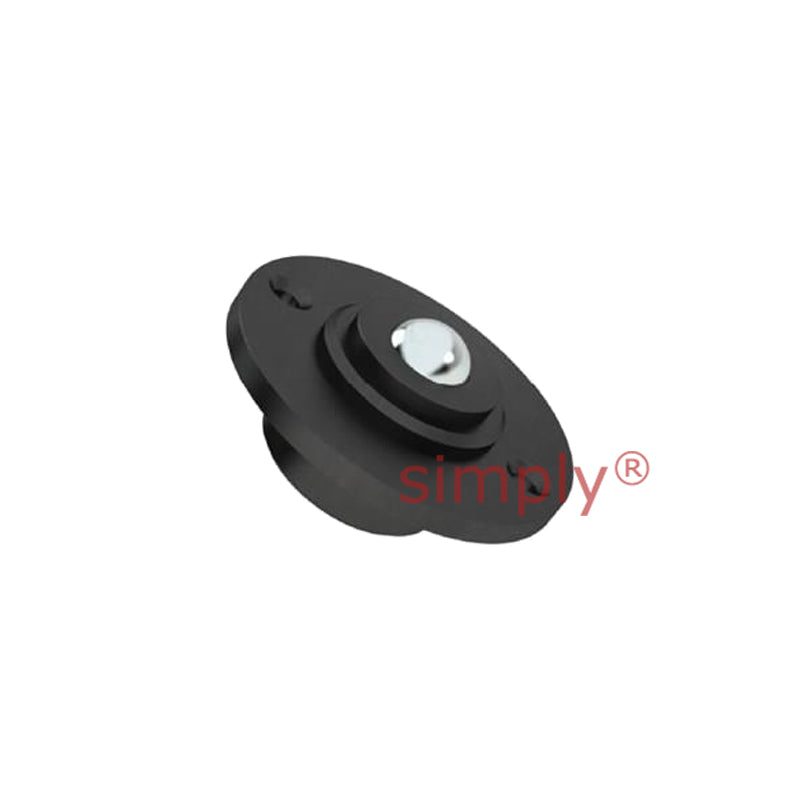

High-Performance High Capacity 2 Bolt Top Mounted Round Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 24.12kg - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Quantity Price Breaks
High-Performance High Capacity 2 Bolt Top Mounted Round Ball Transfer Unit with 12.7mm Stainless Steel Ball - Load Capacity 24.12kg - Allow 2-3 Days
- Regular price
- €47.96 ex VAT
- Sale price
- €47,96
- Regular price
-
Description
Surface Fixed Top Mount Stainless Steel Ball Transfer Units: Ball transfer units are designed for multi-direction materials handling solutions. This series of transfer units consists of a large load-bearing stainless steel ball running on several smaller support balls contained within a zinc-plated mild steel flanged housing, allowing the large ball to rotate freely. Top mount ball transfer units feature flange-mounted holes that enable users to securely attach them to a flat surface in a top position, ensuring enhanced stability.
Benefits: Greatly reduces friction and allows heavy loads to be moved with a minimum of effort. Corrosion-resistant stainless steel. Easy assembly, reducing downtime.
Technical
| --- | = | Dimensions |
| Ball Diameter | = | 12.7mm |
| Y mm | = | 22.6mm |
| W mm | = | 14.6mm |
| D mm | = | 23.8mm |
| FXF mm | = | 44.5mm |
| CXC mm | = | 34.8mm |
| T mm | = | 3.2mm |
| E(Dia) mm | = | 2x3.6mm |
| --- | = | Loads and Speeds |
| Load Capacity | = | 24.12 kg |
| Load capacity Ibs | = | 52.93 lbs |
| Weight | = | 0.08 kg |
| --- | = | Materials |
| Material | = | Body: Zinc Plated Mild Steel< |
| br> | = | Ball: 420 Stainless Steel |
| Mounting Type | = | Round |
