15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain

SKU: 5SR15-IDLER

15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain

€9.09 ex VAT
€9,09
ex VAT
In stock

Quantity Price Breaks

5 €8.09
9 €7.64
19 €7.54
29 €7.45
49 €7.36
74 €7.27
99 €6.82
199 €6.73
249 €6.64
499 €6.54
999 €6.36
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain
SKU: 5SR15-IDLER

15 Tooth 10B Simplex Idler Sprocket for 5/8 Inch Pitch Chain

€9.09 ex VAT
€9,09
ex VAT

Description

Idler Sprockets: Description sprockets are manufactured to internationally recognised standards DIN8187-ISOR 606 and are produced from C45 steel UNI EN 10083-1 having a minimum strength of 600 Nmm 2. Conveniently stocked with an integral ball bearing fitted (dimension ‘D’ for bore size)."

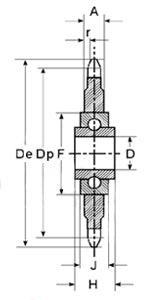

Technical

No of Teeth = 15
Pitch Chain Diameter Dp = 76.36mm
Outer Diameter De = 83mm
Bore Diameter = 16.2mm
Tooth Width A = 9.1mm
Hub Diameter F = 40mm
H = 18.3mm
J = 12mm
Chain Type = 10B-1
58x38 inch = Weight
0.27 kg = N/A
