SKU: 60-1-NO26-DUN
Branded 60-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- €4.38 ex VAT
- Sale price
- €4,38
- Regular price
-
Not in stock
Quantity Price Breaks
2
€3.90
5
€3.68
10
€3.64
29
€3.59
49
€3.55
75
€3.50
100
€3.29
200
€3.24
250
€3.20
500
€3.15
1000
€3.07
SKU:
60-1-NO26-DUN
Branded 60-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- €4.38 ex VAT
- Sale price
- €4,38
- Regular price
-
Description

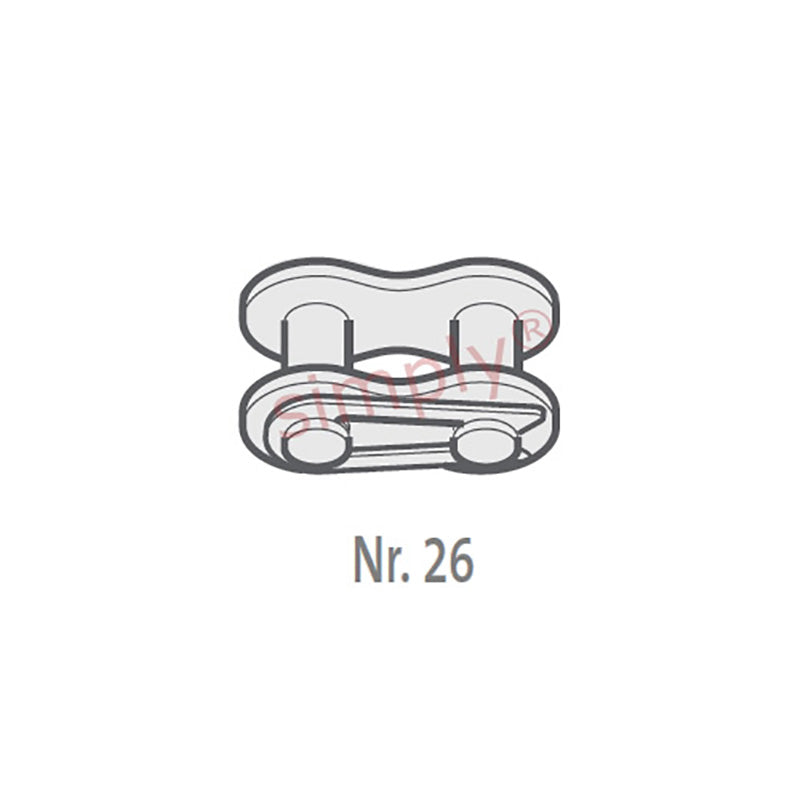

Branded CL / No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 18mm |
| Plate Width Inner max (E) | = | 2.4mm |
| Plate Width Outer max (F) | = | 2.4mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H1) | = | 25.9mm |
| Connecting Link Extension max (J) | = | 1.6mm |
| ISO606 Tensile Strength min | = | 31300 N |
| Weight | = | 1.5kg/m |
