SKU: 60-3-BB-NO58-RENOLD
Renold Blue Box 60-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- €17.72 ex VAT
- Sale price
- €17,72
- Regular price
-
Not in stock
Quantity Price Breaks
2
€15.77
5
€14.88
10
€14.71
29
€14.53
49
€14.35
75
€14.18
100
€13.29
200
€13.11
250
€12.94
500
€12.76
1000
€12.40
SKU:
60-3-BB-NO58-RENOLD
Renold Blue Box 60-3-NO58 ANSI / AS Triplex Chain Cottered Connecting Link 3/4 inch Pitch
- Regular price
- €17.72 ex VAT
- Sale price
- €17,72
- Regular price
-
Description

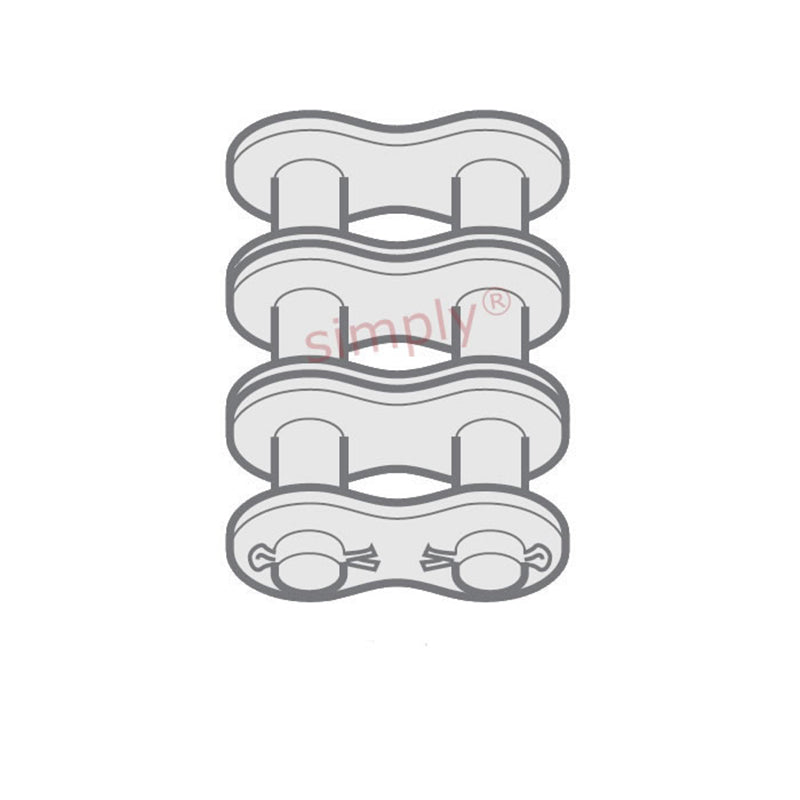

| Renold No. 58 ANSI Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.57mm |
| Roller Diameter max (C) | = | 11.91mm |
| Plate Height max (D) | = | 17.5mm |
| Plate Width Inner max (E) | = | 2.45mm |
| Plate Width Outer max (F) | = | 2.45mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H2) | = | 70.9mm |
| Connecting Link Extension max (J) | = | 2.6mm |
| Transverse Pitch nom (K) | = | 22.78mm |
| ISO606 Tensile Strength min | = | 93900 N |
| Weight | = | 1.51kg/m |
