SKU: 6003-2Z-HT-330

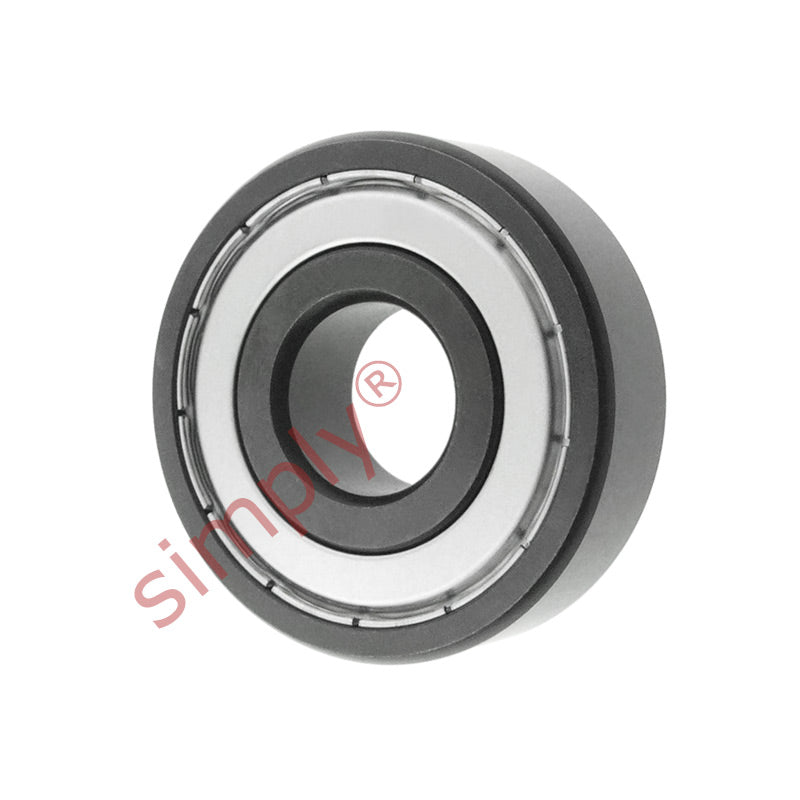

6003ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x35x10mm Max 250rpm
- Regular price
- €14.21 ex VAT
- Sale price
- €14,21
- Regular price
-
In stock
Quantity Price Breaks
3
€12.65
5
€11.94
10
€11.79
15
€11.65
20
€11.51
30
€11.37
40
€10.66
50
€10.52
60
€10.37
75
€10.23
100
€9.95
SKU:
6003-2Z-HT-330
6003ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 17x35x10mm Max 250rpm
- Regular price
- €14.21 ex VAT
- Sale price
- €14,21
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 17mm |
| Outside diameter D | = | 35mm |
| Width W | = | 10mm |
| Static load max | = | 1.88 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 250 rpm |
| Weight | = | 40 g |
