SKU: 6008/C3-FAG

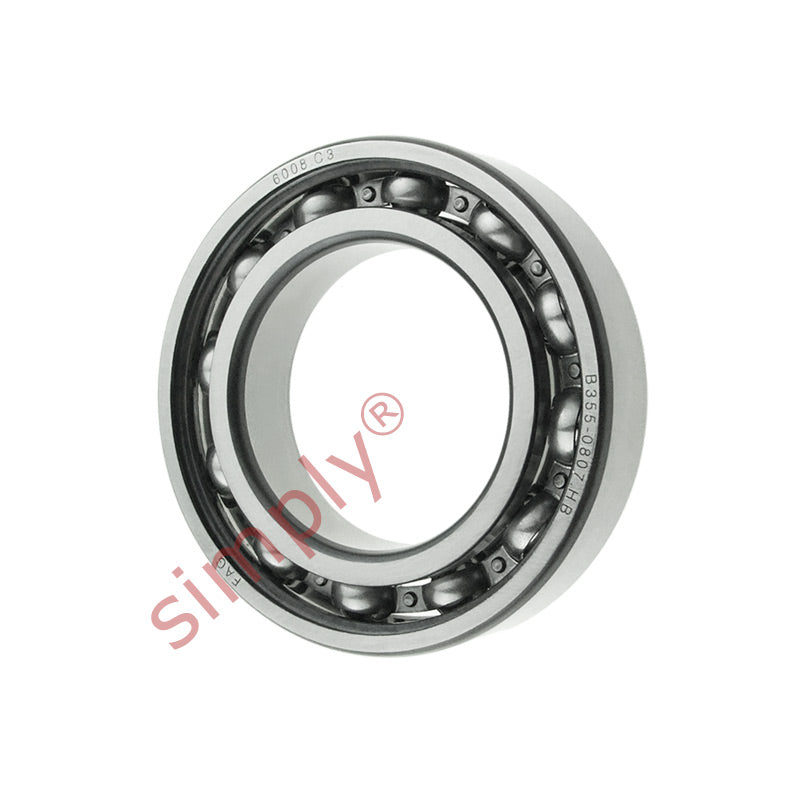

FAG 6008C3 Open Deep Groove Ball Bearing 40x68x15mm
- Regular price
- €11.88 ex VAT
- Sale price
- €11,88
- Regular price
-
In stock
Quantity Price Breaks
10+
€10.57
19+
€9.98
29+
€9.86
39+
€9.74
49+
€9.62
74+
€9.50
99+
€8.91
199+
€8.79
249+
€8.67
499+
€8.55
999+
€8.32
SKU:
6008/C3-FAG
FAG 6008C3 Open Deep Groove Ball Bearing 40x68x15mm
- Regular price
- €11.88 ex VAT
- Sale price
- €11,88
- Regular price
-
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Technical
| d | = | 40mm |
| D | = | 68mm |
| B | = | 15mm |
| Dynamic load C | = | 17.8 kN |
| Static load Co | = | 11.6 kN |
| Fatigue load limit Pu | = | 0.49 kN |
| Reference speed | = | 22000 rpm |
| Limiting speed | = | 14000 rpm |
| Mass | = | 0.19 kg |
| d1 | = | 49.3mm |
| D1 | = | 58.8mm |
| D2 | = | 61.1mm |
| r1r2 min | = | 1mm |
| da min | = | 44.6mm |
| Da max | = | 63.4mm |
| ra max | = | 1mm |
| Calc factor Kr | = | 0.025 |
| Calc factor | = | 15 |
