SKU: 6011-HT-330

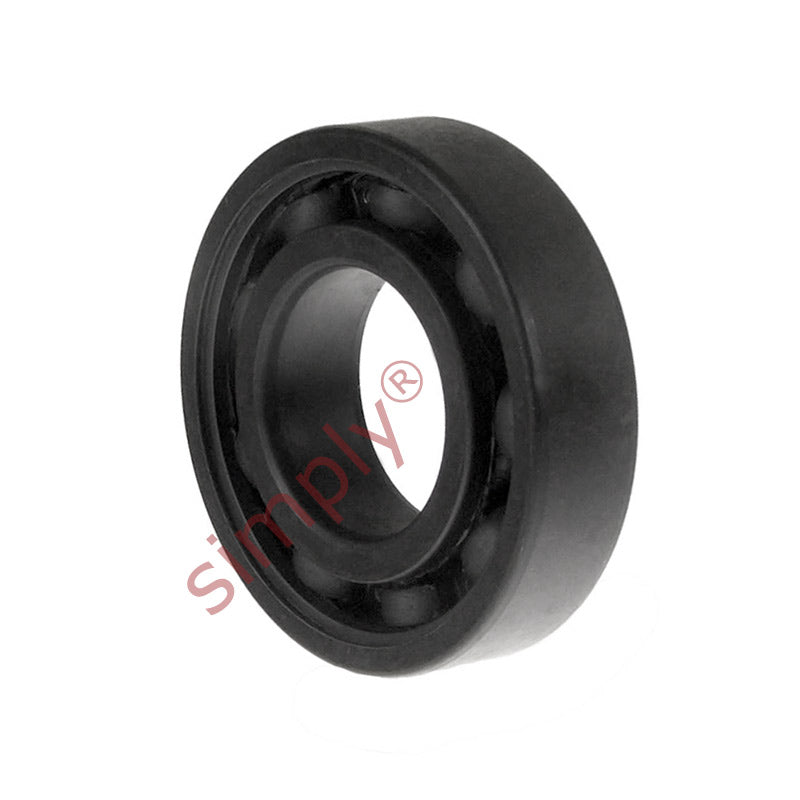

6011HT330 High Temp 330C Open Deep Groove Ball Bearing 55x90x18mm Max 85rpm
- Regular price
- €27.17 ex VAT
- Sale price
- €27,17
- Regular price
-
Not in stock
Quantity Price Breaks
3
€24.18
5
€22.82
10
€22.55
15
€22.28
20
€22.01
30
€21.74
40
€20.38
50
€20.11
60
€19.83
75
€19.56
100
€19.02
SKU:
6011-HT-330
6011HT330 High Temp 330C Open Deep Groove Ball Bearing 55x90x18mm Max 85rpm
- Regular price
- €27.17 ex VAT
- Sale price
- €27,17
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Technical
| Inside diameter d | = | 55mm |
| Outside diameter D | = | 90mm |
| Width W | = | 18mm |
| Static load max | = | 12.26 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 85 rpm |
| Weight | = | 390 g |
