SKU: 6011NR-MB

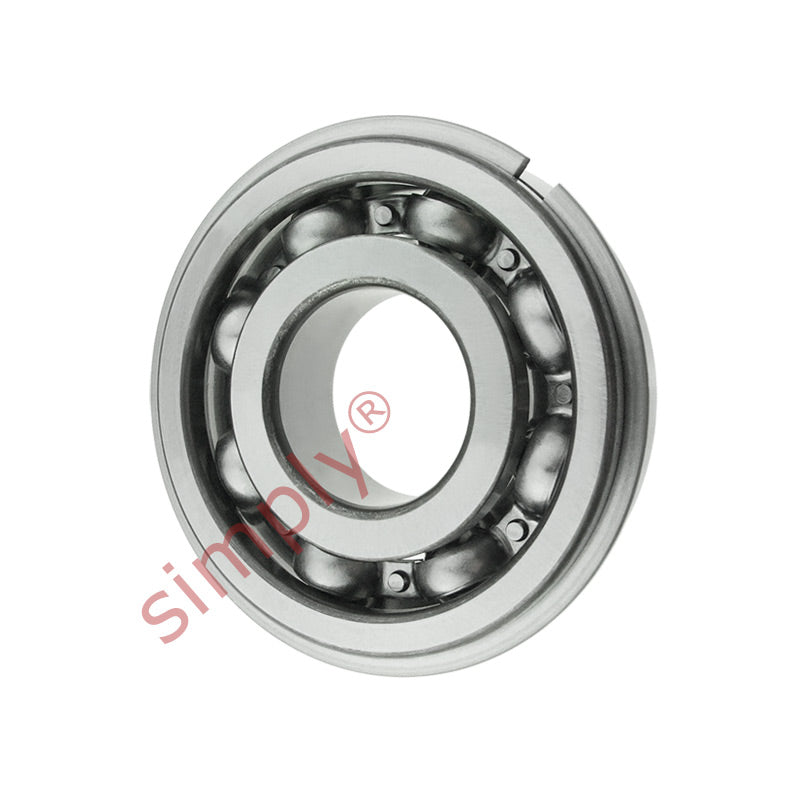

6011NR Deep Groove Ball Bearing with Snap Ring 55x90x18mm
- Regular price
- €53.44 ex VAT
- Sale price
- €53,44
- Regular price
-
Not in stock
Quantity Price Breaks
10
€47.56
19
€44.89
29
€44.36
39
€43.82
49
€43.29
74
€42.75
99
€40.08
199
€39.55
249
€39.01
499
€38.48
999
€37.41
SKU:
6011NR-MB
6011NR Deep Groove Ball Bearing with Snap Ring 55x90x18mm
- Regular price
- €53.44 ex VAT
- Sale price
- €53,44
- Regular price
-
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Technical
| d | = | 55mm |
| D | = | 90mm |
| B | = | 18mm |
| Dyamic load C | = | 29.6 kN |
| Static load Co | = | 21.2 kN |
| Fatigue load limit Pu | = | 0.9 kN |
| Reference speed | = | 16000 rpm |
| Limiting speed | = | 10000 rpm |
| Mass | = | 0.38 kg |
| d1 | = | 66.3mm |
| d2 | = | 76.5mm |
| D2 | = | 81.5mm |
| r1r2 min | = | 1.1mm |
| da min | = | 61 |
