SKU: 6013-2Z-HT-330

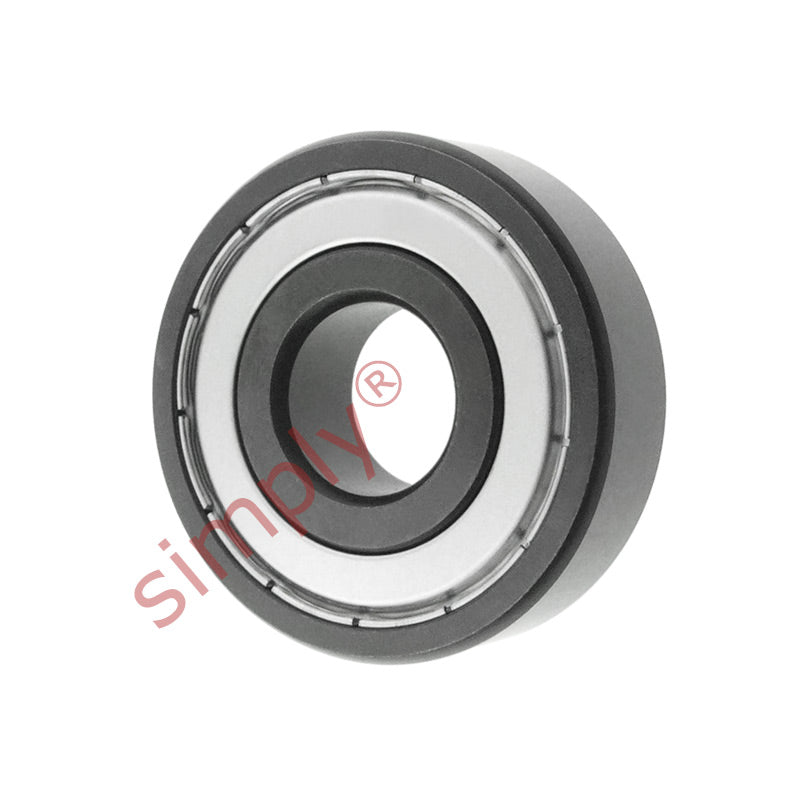

6013ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 65x100x18mm Max 70rpm
- Regular price
- €44.58 ex VAT
- Sale price
- €44,58
- Regular price
-
Not in stock
Quantity Price Breaks
3
€39.68
5
€37.45
10
€37.00
15
€36.56
20
€36.11
30
€35.66
40
€33.44
50
€32.99
60
€32.54
75
€32.10
100
€31.21
SKU:
6013-2Z-HT-330
6013ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 65x100x18mm Max 70rpm
- Regular price
- €44.58 ex VAT
- Sale price
- €44,58
- Regular price
-
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Technical
| Inside diameter d | = | 65mm |
| Outside diameter D | = | 100mm |
| Width W | = | 18mm |
| Static load max | = | 14.45 kN |
| Max operating temperature | = | 330 deg Celcius |
| Maximum speed | = | 70 rpm |
| Weight | = | 440 g |
