SKU: 6028-ZZ-NACHI
NACHI 6028ZZ Metal Shielded Deep Groove Ball Bearing 140x210x33mm
- Regular price
- €352.18 ex VAT
- Sale price
- €352,18
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
5
€313.44
9
€295.83
19
€292.31
29
€288.79
49
€285.27
74
€281.74
99
€264.14
199
€260.61
249
€257.09
499
€253.57
999
€246.53
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |

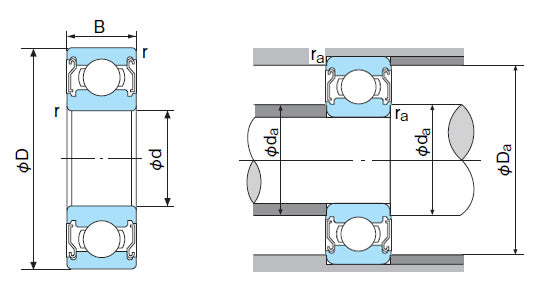

Technical
| Inside Diameter d | = | 140mm |
| Outside Diameter D | = | 210mm |
| Width B | = | 33mm |
| Min radius r | = | 2mm |
| Dynamic load | = | 110000 kN |
| Static load | = | 109000 kN |
| Max speed | = | 3000 rpm |
| da min | = | 148mm |
| Da max | = | 202mm |
| ra max | = | 2mm |
| Weight | = | 4.15 kg |
