SKU: 60H-1-NO26-MB
Branded 60H-1-NO26 ANSI / AS Heavy Duty Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- €8.77 ex VAT
- Sale price
- €8,77
- Regular price
-
In stock
Quantity Price Breaks
2
€7.81
5
€7.37
10
€7.28
29
€7.19
49
€7.10
75
€7.02
100
€6.58
200
€6.49
250
€6.40
500
€6.31
1000
€6.14
SKU:
60H-1-NO26-MB
Branded 60H-1-NO26 ANSI / AS Heavy Duty Simplex Chain Connecting Link With Spring Clip 3/4 inch Pitch
- Regular price
- €8.77 ex VAT
- Sale price
- €8,77
- Regular price
-
Description

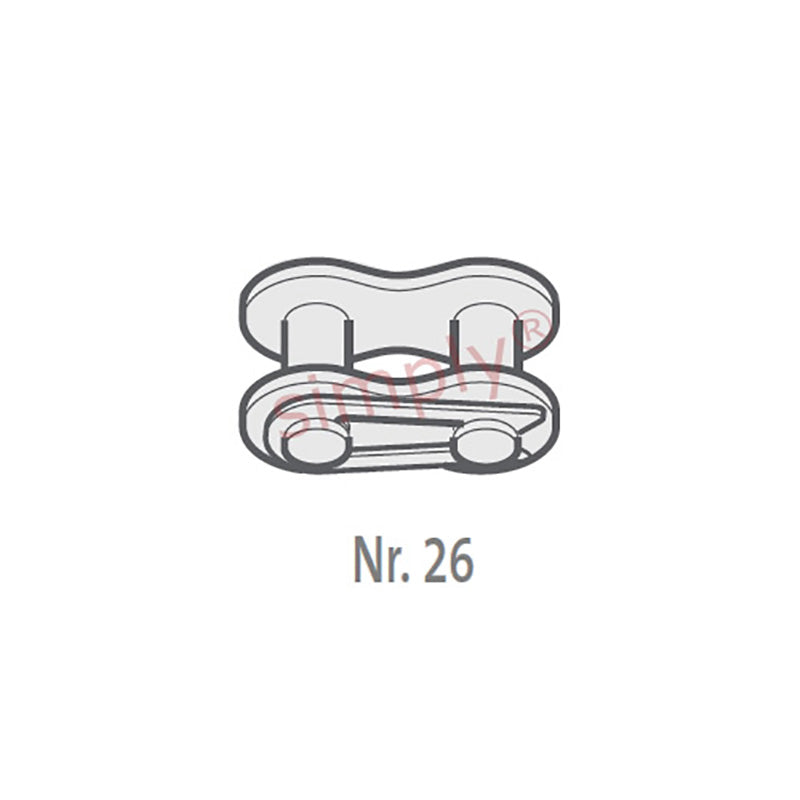

Branded CL / No. 26 ANSI Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
Technical
| Pitch (A) | = | 0.75 inch |
| Pitch (A) | = | 19.05mm |
| Inside Width min (B) | = | 12.6mm |
| Roller Diameter max (C) | = | 11.9mm |
| Plate Height max (D) | = | 18mm |
| Pin Diameter max (G) | = | 5.94mm |
| Pin Length max (H1) | = | 28.8mm |
| ISO606 Tensile Strength min | = | 3245 N |
| Weight | = | 1.97kg/m |
