SKU: 61810-2RSR/C3-MB

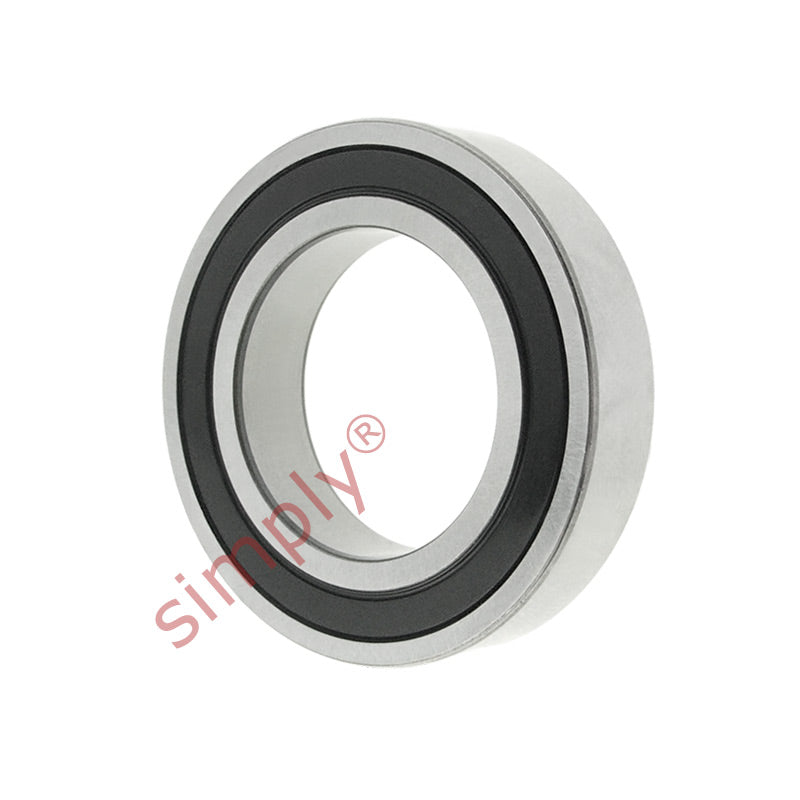

Major Branded 618102RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 50x65x7mm
- Regular price
- €65.36 ex VAT
- Sale price
- €65,36
- Regular price
-
In stock
Quantity Price Breaks
10+
€58.17
19+
€54.90
29+
€54.25
39+
€53.60
49+
€52.94
74+
€52.29
99+
€49.02
199+
€48.37
249+
€47.71
499+
€47.06
999+
€45.75
SKU:
61810-2RSR/C3-MB
Major Branded 618102RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 50x65x7mm
- Regular price
- €65.36 ex VAT
- Sale price
- €65,36
- Regular price
-
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Technical
| d | = | 50mm |
| D | = | 65mm |
| B | = | 7mm |
| Dynamic load C | = | 6.76 kN |
| Static load Co | = | 6.8 kN |
| Fatigue load limit Pu | = | 0.285 kN |
| Reference speed | = | 20000 rpm |
| Limiting speed | = | 6000 rpm |
| Mass | = | 0.052 kg |
| d1 | = | 55.1mm |
| D2 | = | 61.8mm |
| r1r2 min | = | 0.3mm |
| da min | = | 52 |
