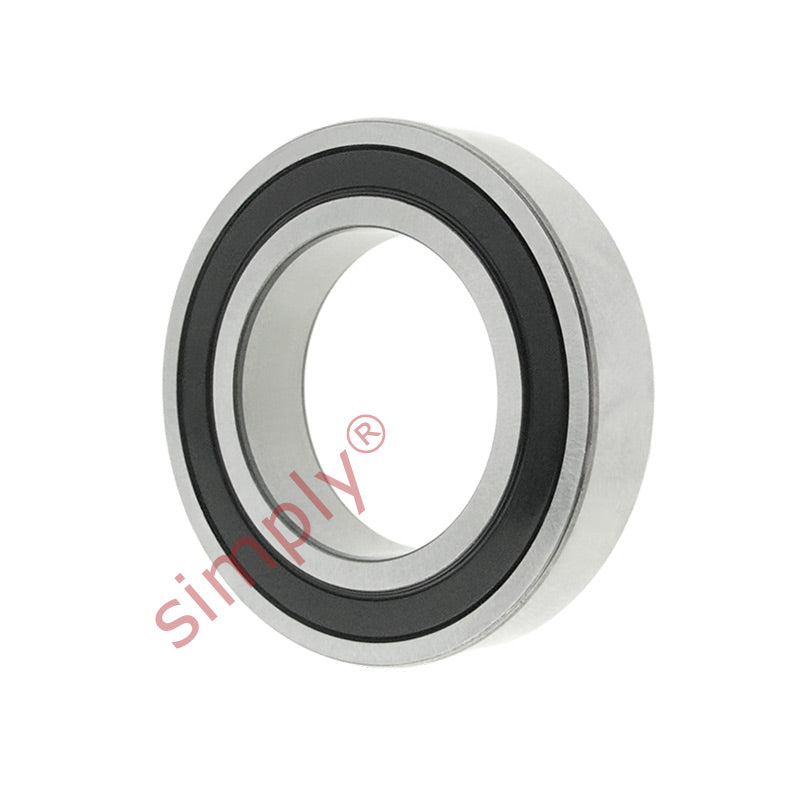

Major Branded 618142RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 70x90x10mm

SKU: 61814-2RSR/C3-MB

Major Branded 618142RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 70x90x10mm

€134.65 ex VAT
€134,65
ex VAT
Equivalent to: 61814NSEC3 61814DUC3 61814RSC3 61814RSHC3 61814PC3 61814RSRC3 61814LUC3 6814NSEC3 6814DUC3 6814RSC3 6814RSHC3 6814PC3 6814RSRC3 6814LUC3 618142NSEC3 61814DDUC3 618142RSC3 618142RS1C3 618142RSHC3 61814PPC3 61814LLU 68142NSEC3 6814DDUC3 68142RSC3 68142RS1C3 68142RSHC3 6814PPC3 68142RSRC3 6814LLUC3
In stock

Quantity Price Breaks

10+ €119.84
19+ €113.11
29+ €111.76
39+ €110.41
49+ €109.07
74+ €107.72
99+ €100.99
199+ €99.64
249+ €98.29
499+ €96.95
999+ €94.26
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 618142RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 70x90x10mm
SKU: 61814-2RSR/C3-MB

Major Branded 618142RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 70x90x10mm

€134.65 ex VAT
€134,65
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 70mm
D = 90mm
B = 10mm
Dynamic load C = 12.4 kN
Static load Co = 13.2 kN
Fatigue load limit Pu = 0.56 kN
Reference speed = 15000 rpm
Limiting speed = 4300 rpm
Mass = 0.14 kg
d1 = 76.6mm
d2 = 85.5mm
D2 = -mm
r1r2 min = 0.6mm
da min = 73.2
