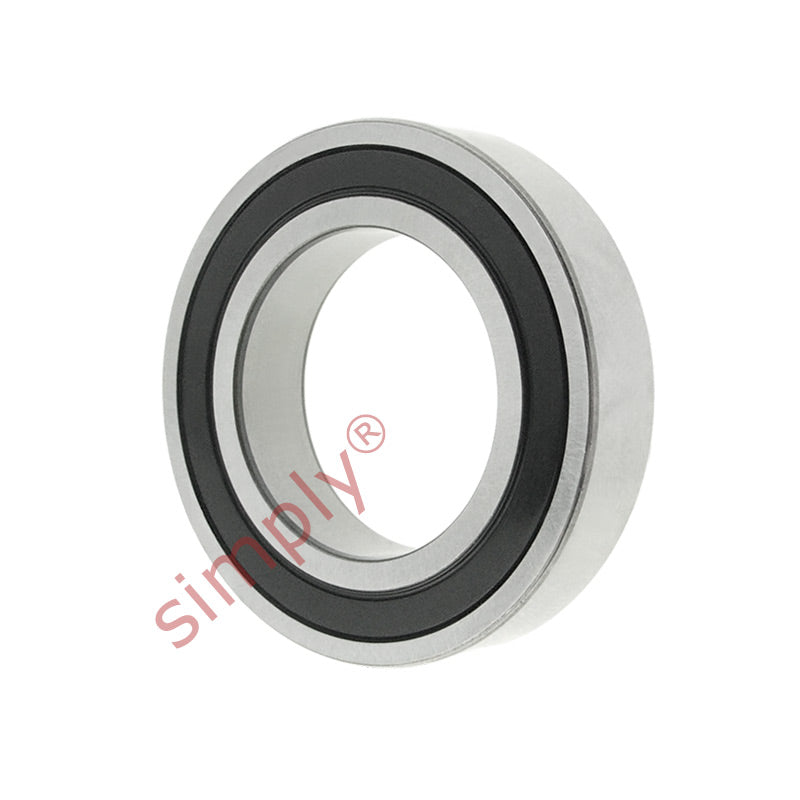

Major Branded 618162RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 80x100x10mm

SKU: 61816-2RSR/C3-MB

Major Branded 618162RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 80x100x10mm

€170.13 ex VAT
€170,13
ex VAT
Equivalent to: 61816NSEC3 61816DUC3 61816RSC3 61816RSHC3 61816PC3 61816RSRC3 61816LUC3 6816NSEC3 6816DUC3 6816RSC3 6816RSHC3 6816PC3 6816RSRC3 6816LUC3 618162NSEC3 61816DDUC3 618162RSC3 618162RS1C3 618162RSHC3 61816PPC3 61816LLU 68162NSEC3 6816DDUC3 68162RSC3 68162RS1C3 68162RSHC3 6816PPC3 68162RSRC3 6816LLUC3
In stock

Quantity Price Breaks

10+ €151.42
19+ €142.91
29+ €141.21
39+ €139.51
49+ €137.81
74+ €136.10
99+ €127.60
199+ €125.90
249+ €124.19
499+ €122.49
999+ €119.09
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded 618162RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 80x100x10mm
SKU: 61816-2RSR/C3-MB

Major Branded 618162RSRC3 Rubber Sealed Thin Deep Groove Ball Bearing 80x100x10mm

€170.13 ex VAT
€170,13
ex VAT

Description

Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing
Seals can be easily removed for applications that only require 1 seal.
Benefits: Prevents moisture and dirt getting into the bearing, lubricated for life

Technical

d = 80mm
D = 100mm
B = 10mm
Dynamic load C = 13 kN
Static load Co = 15 kN
Fatigue load limit Pu = 0.64 kN
Reference speed = 13000 rpm
Limiting speed = 3600 rpm
Mass = 0.15 kg
d1 = 86.6mm
d2 = 95.5mm
D2 = -mm
r1r2 min = 0.6mm
da min = 83.2
